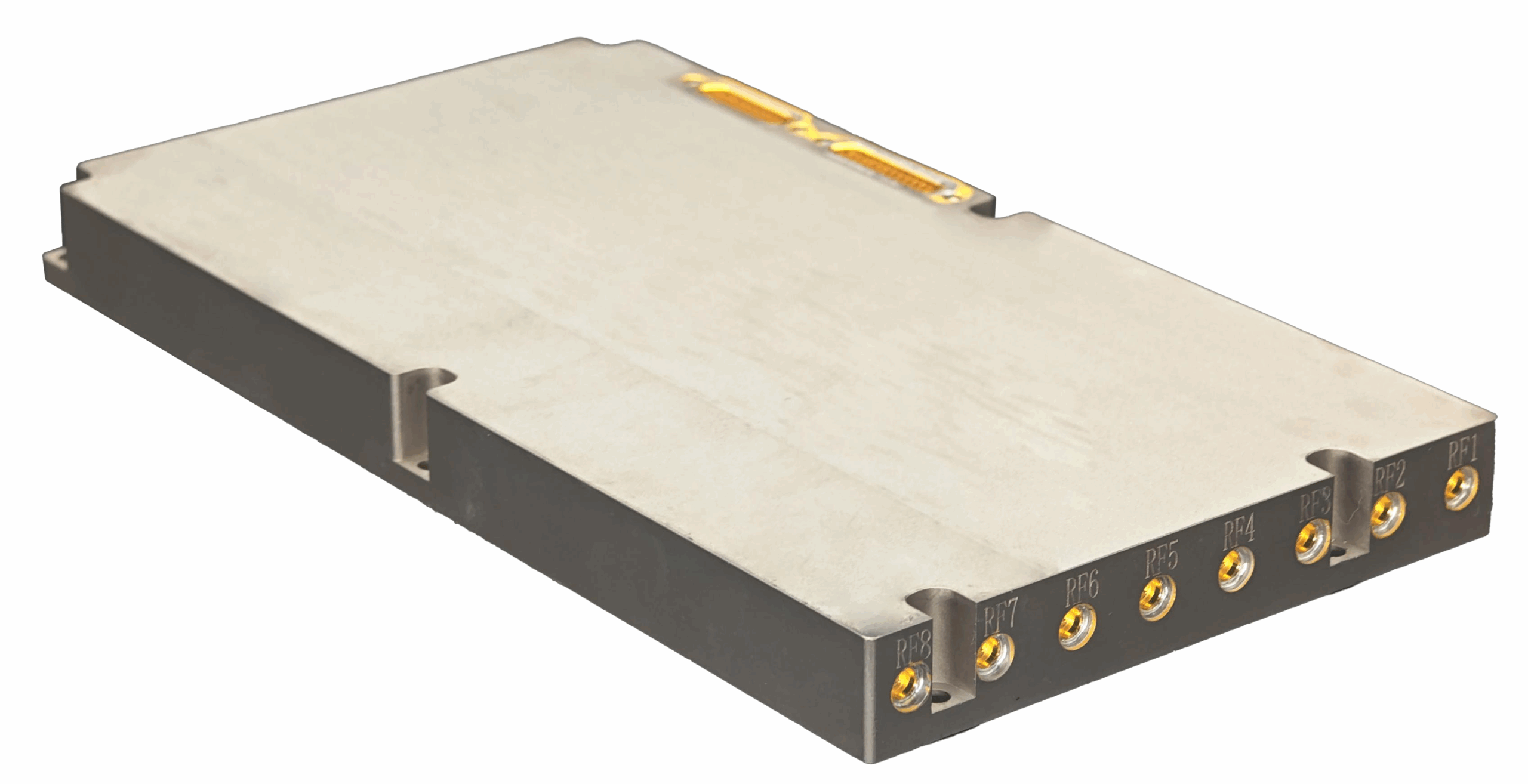

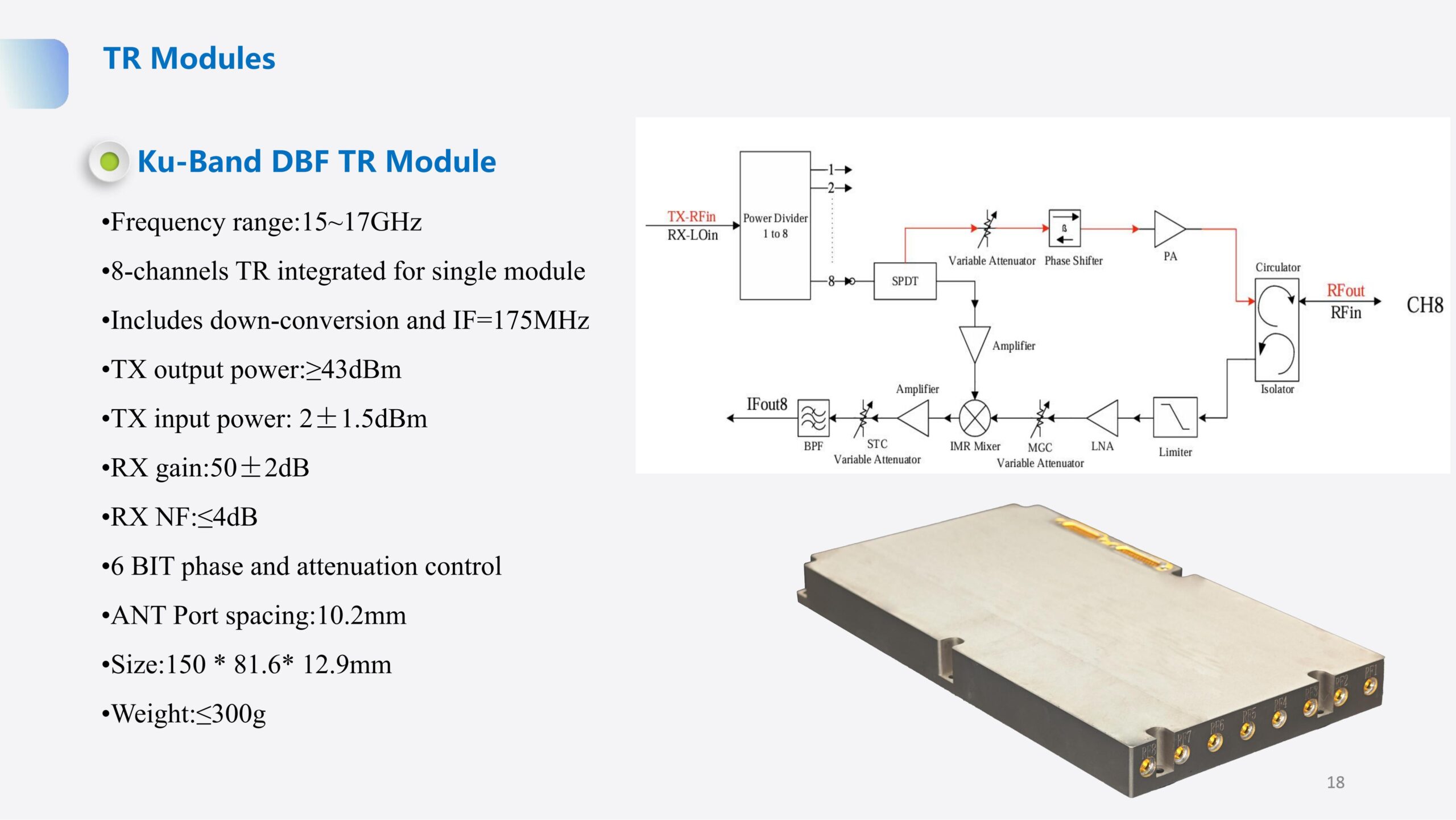

TR Modules Ku-Band DBF TR Module
- Frequency range:15~17GHz

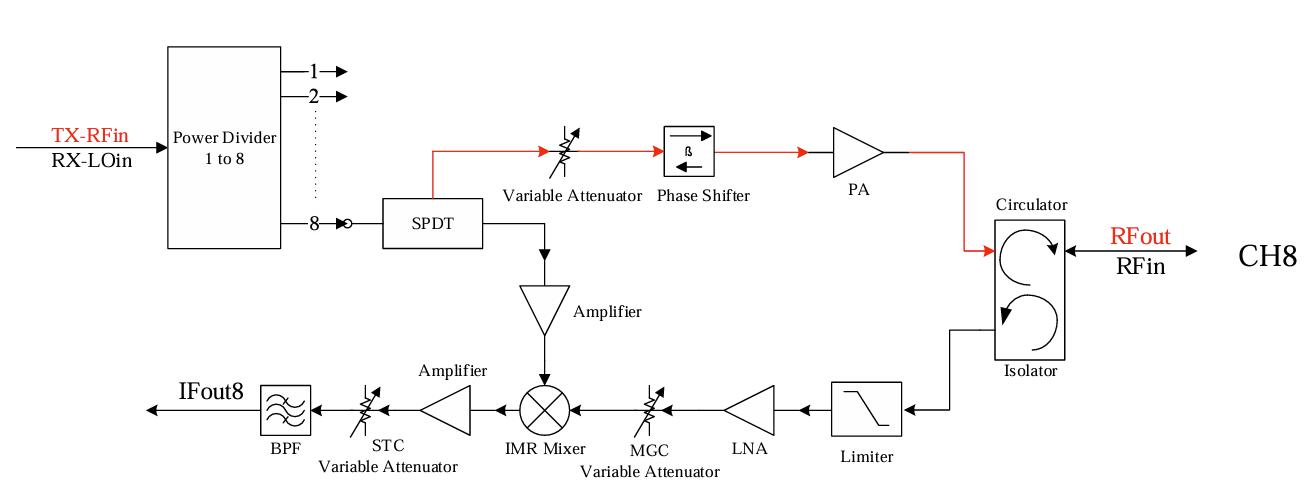

- 8-channels TR integrated for single module
- Includes down-conversion and IF=175MHz
- TX output power:≥43dBm
- TX input power: 2±1.5dBm
- RX gain:50±2dB
- RX NF:≤4dB
- 6 BIT phase and attenuation control
- ANT Port spacing:10.2mm
- Size:150 * 81.6* 12.9mm
- Weight:≤300g
