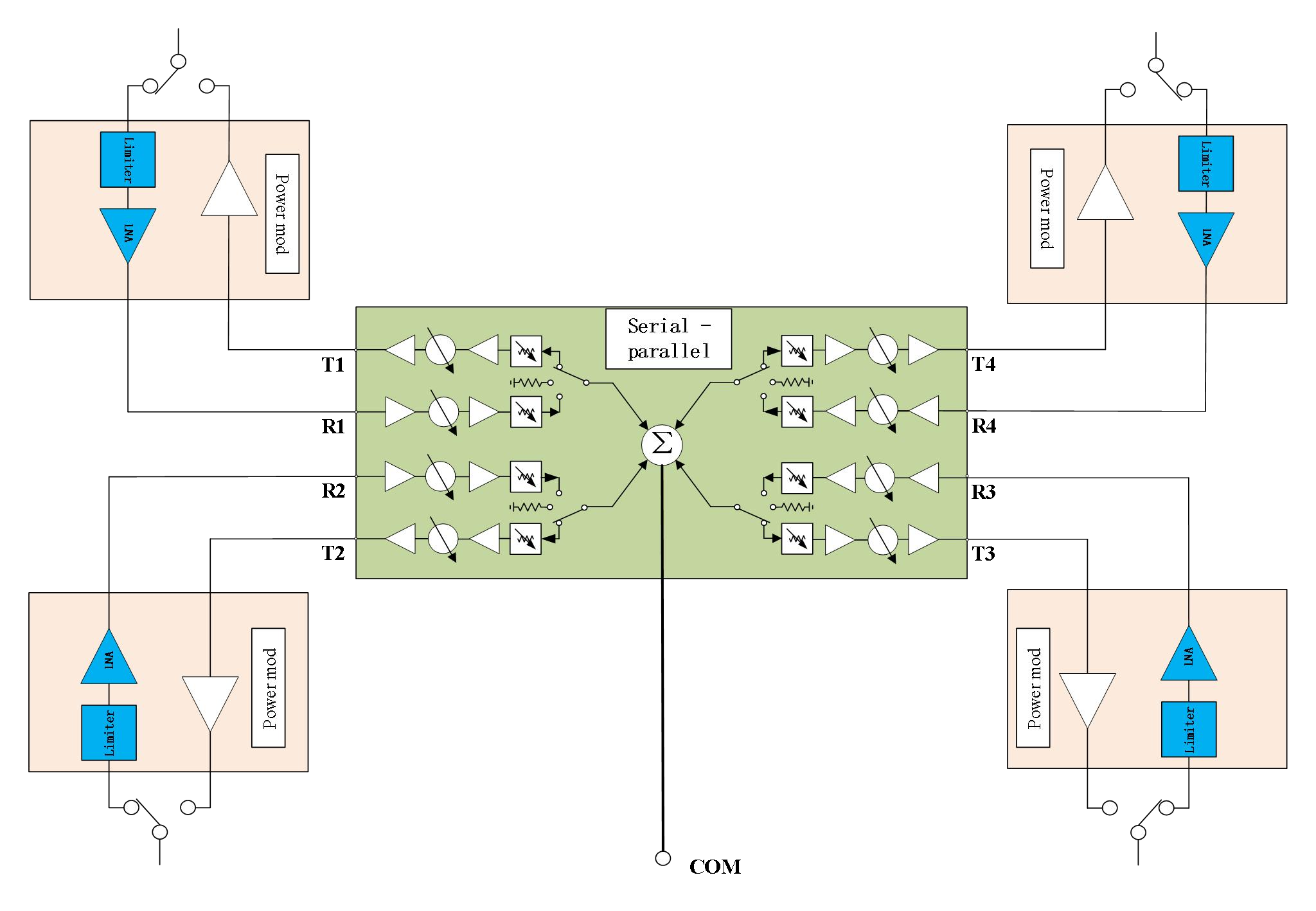

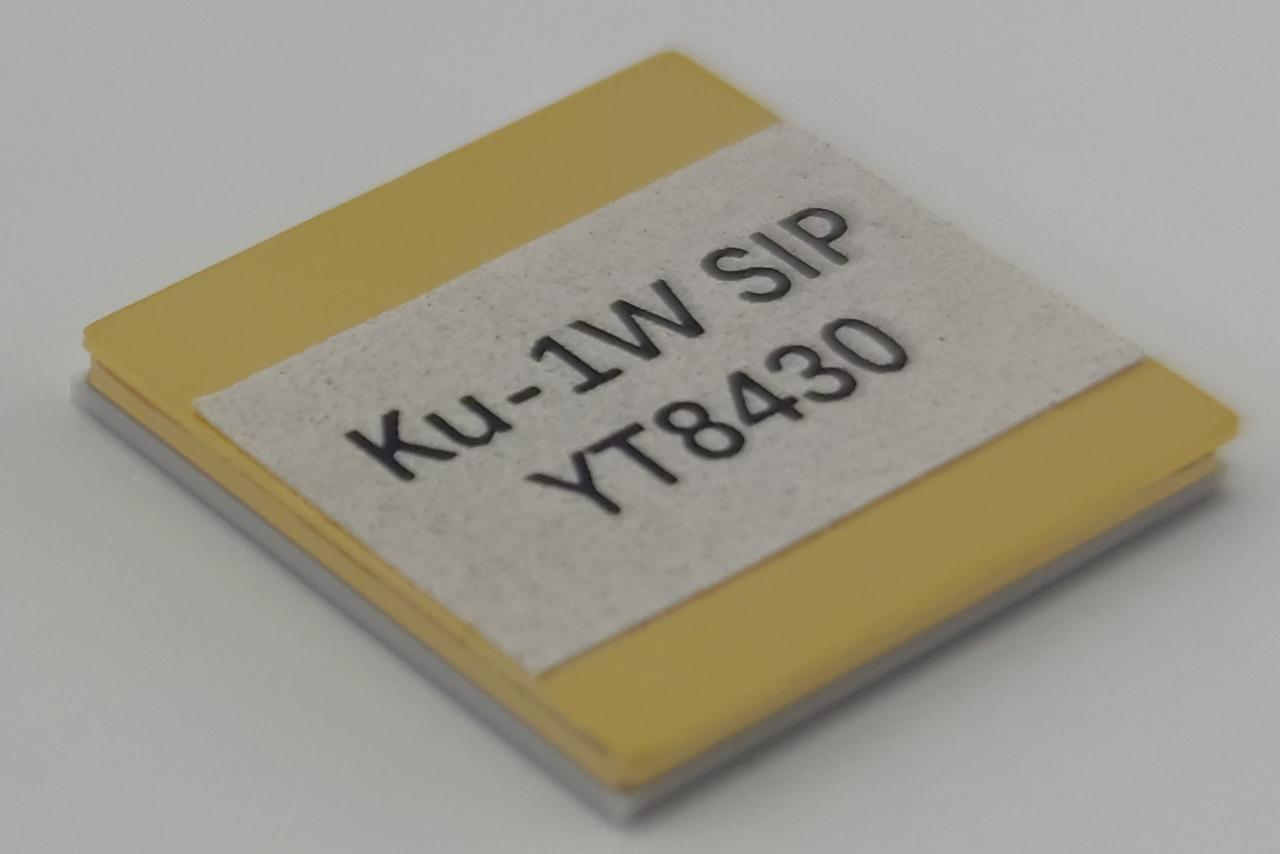

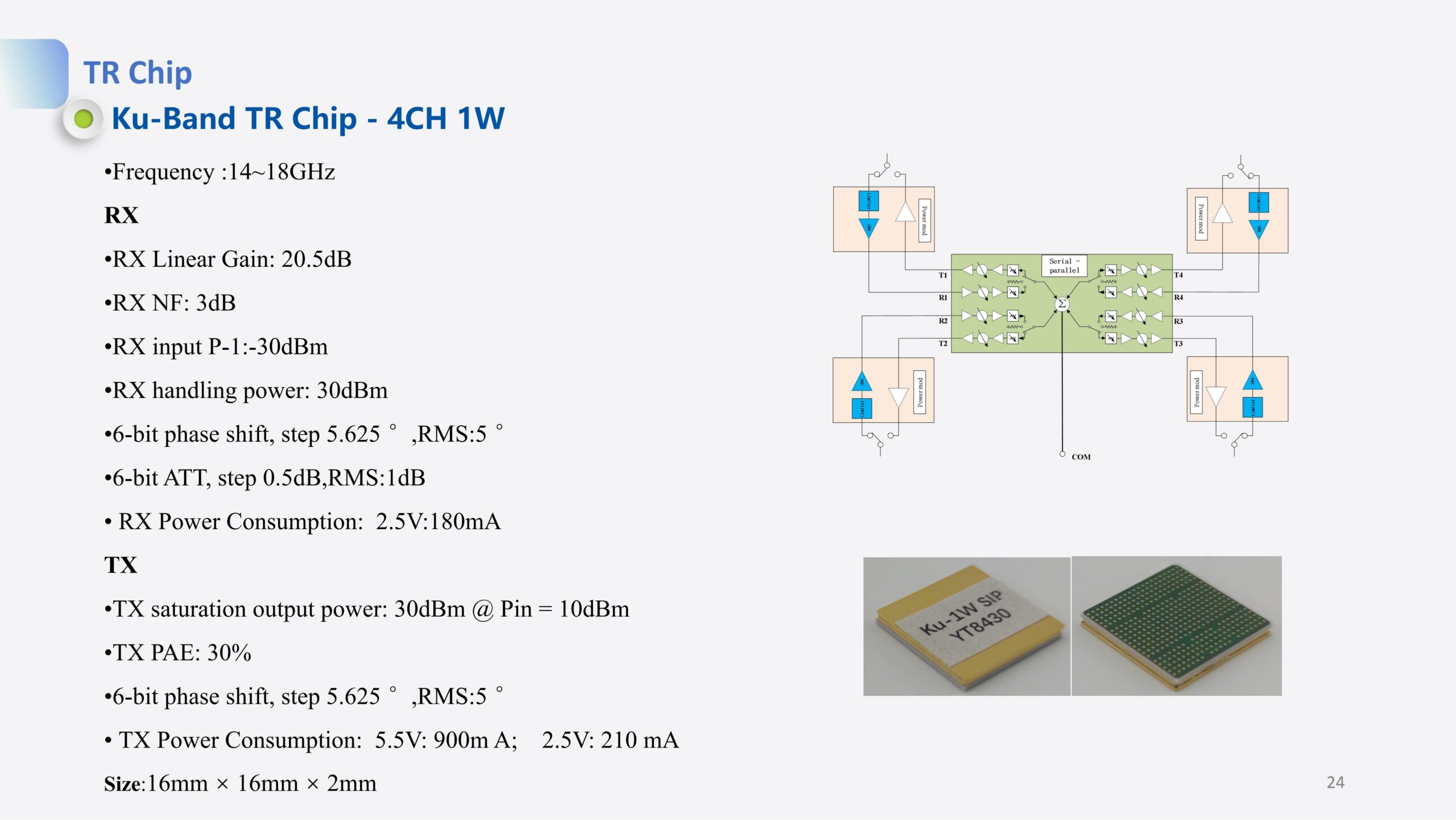

TR Chip Ku-Band TR Chip – 4CH 1W
- Frequency :14~18GHz
RX
- RX Linear Gain: 20.5dB
- RX NF: 3dB
- RX input P-1:-30dBm
- RX handling power: 30dBm
- 6-bit phase shift, step 5.625 °,RMS:5 °
- 6-bit ATT, step 0.5dB,RMS:1dB
- RX Power Consumption: 2.5V:180mA
TX
- TX saturation output power: 30dBm @ Pin = 10dBm
- TX PAE: 30%
- 6-bit phase shift, step 5.625 °,RMS:5 °
- TX Power Consumption: 5.5V: 900m A; 2.5V: 210 mA

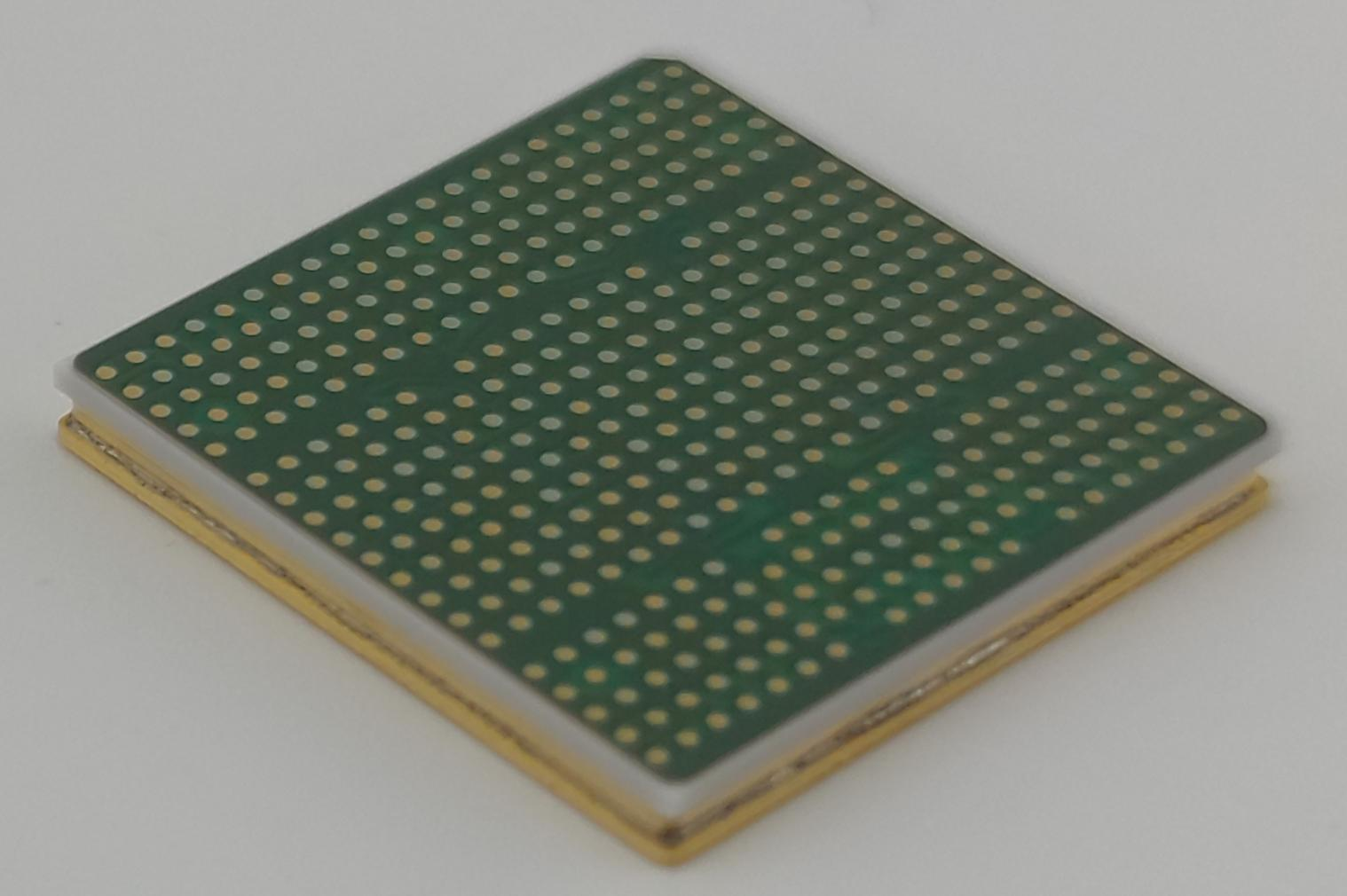

- Size:16mm × 16mm × 2mm
