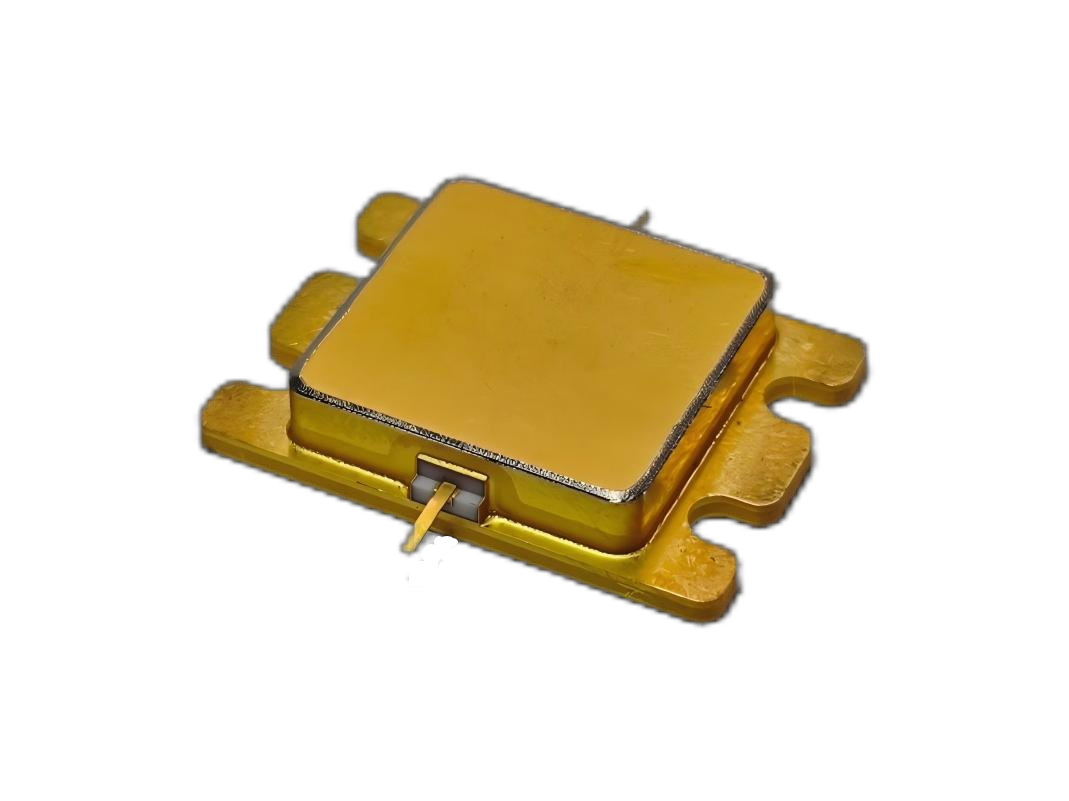

Matched Power Amplifier YTNCM-078098-P52
Matched Power Amplifier YTNCM-078098-P52 - Image 2
Matched Power Amplifier YTNCM-078098-P52 - Image 3

Matched Power Amplifier YTNCM-078098-P52

Categories: , Tags:
Download

Matched Power Amplifier YTNCM-078098-P52

  • Frequency range: 7.8~9.8GHz
  • Output power: 52dBm
  • Power gain: 9dB
  • Power gain flatness:≤±0.8dB
  • PAE: 40%
  • Working Mode： 1000us , 10%
  • Input and output are matched
