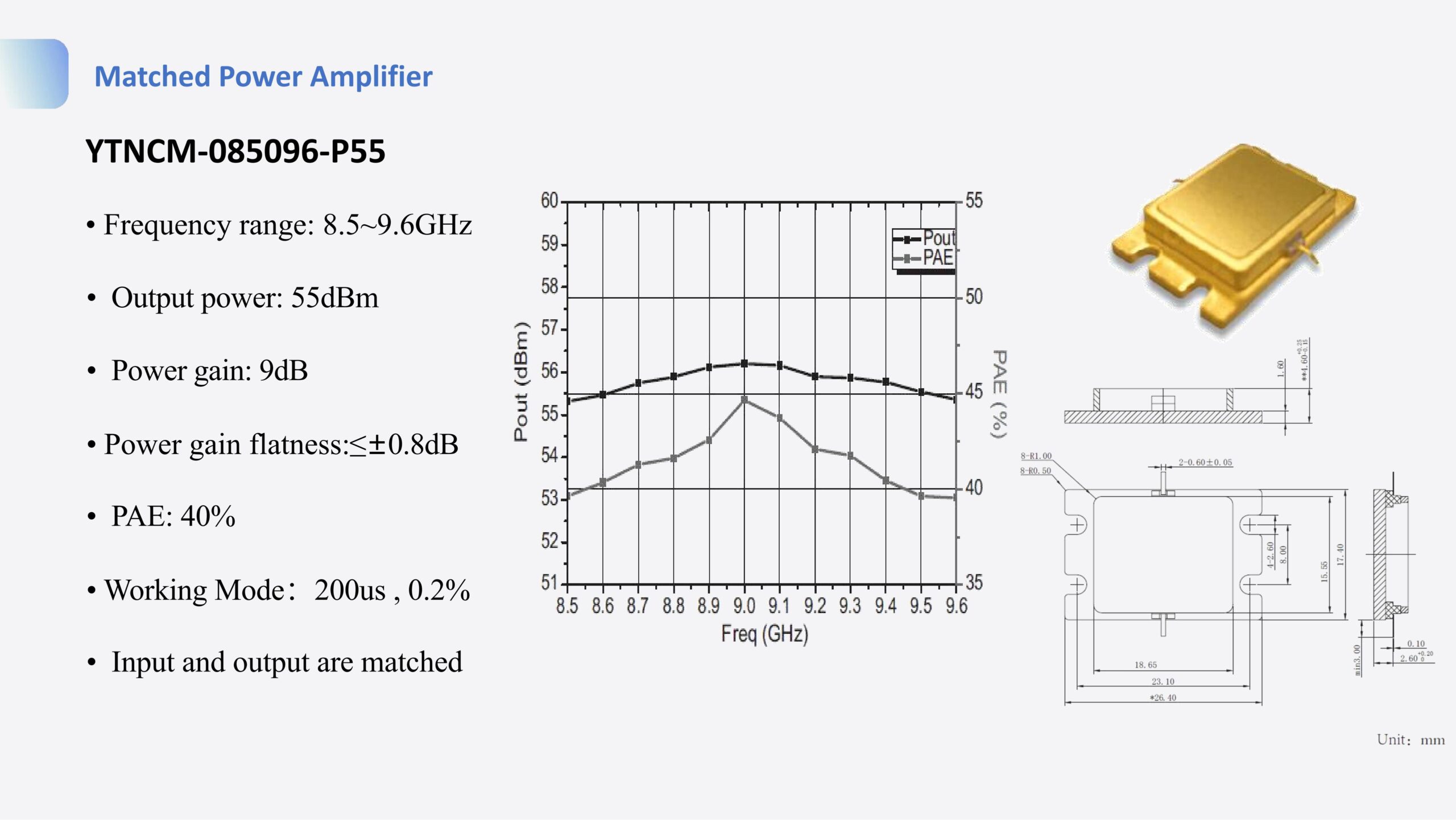

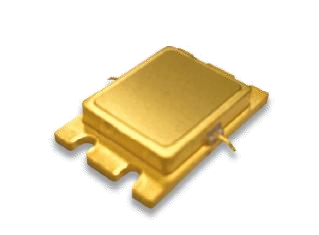

Matched Power Amplifier YTNCM-085096-P55

  • Frequency range: 8.5~9.6GHz

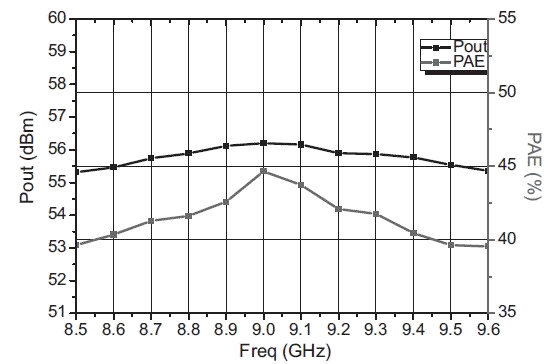

  • Output power: 55dBm
  • Power gain: 9dB
  • Power gain flatness:≤±0.8dB
  • PAE: 40%
  • Working Mode：200us , 0.2%
  • Input and output are matched
