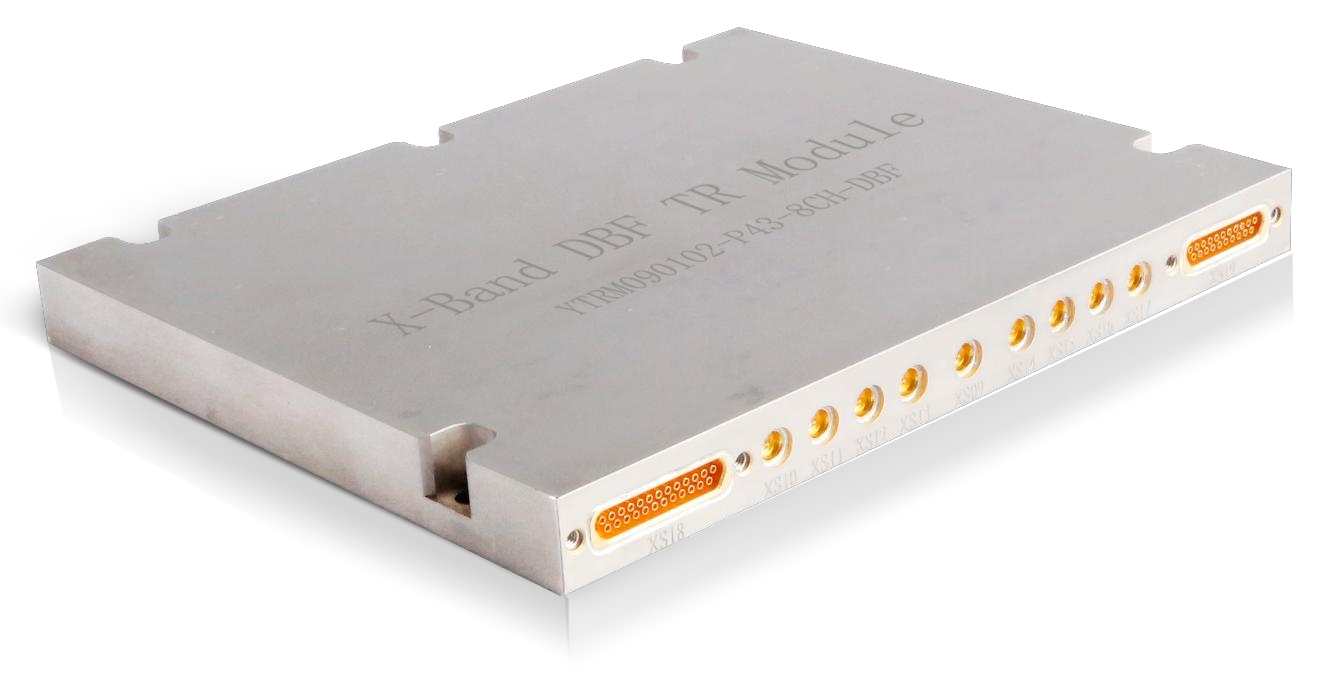

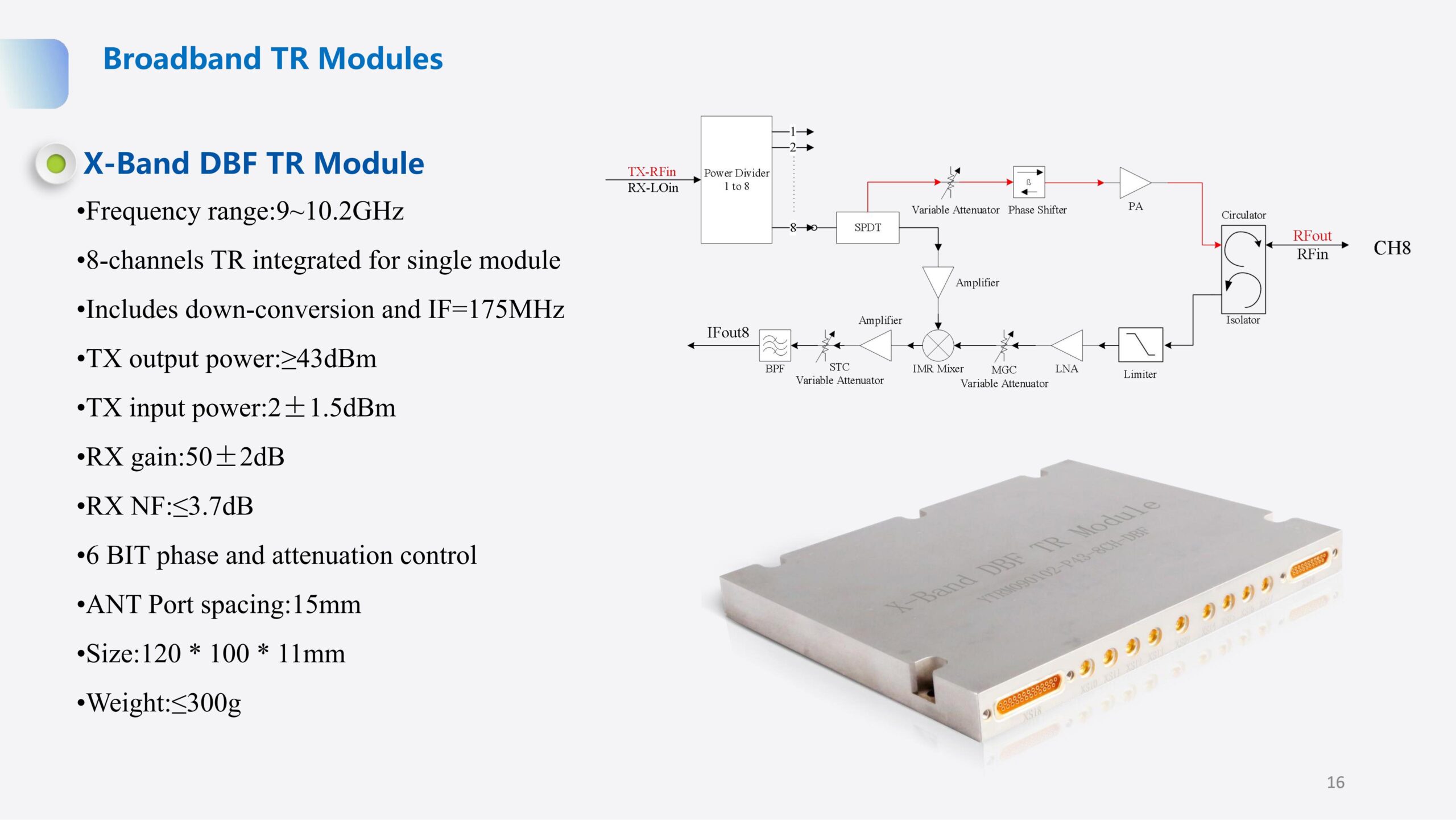

Broadband TR Modules X-Band DBF TR Module
- Frequency range:9~10.2GHz

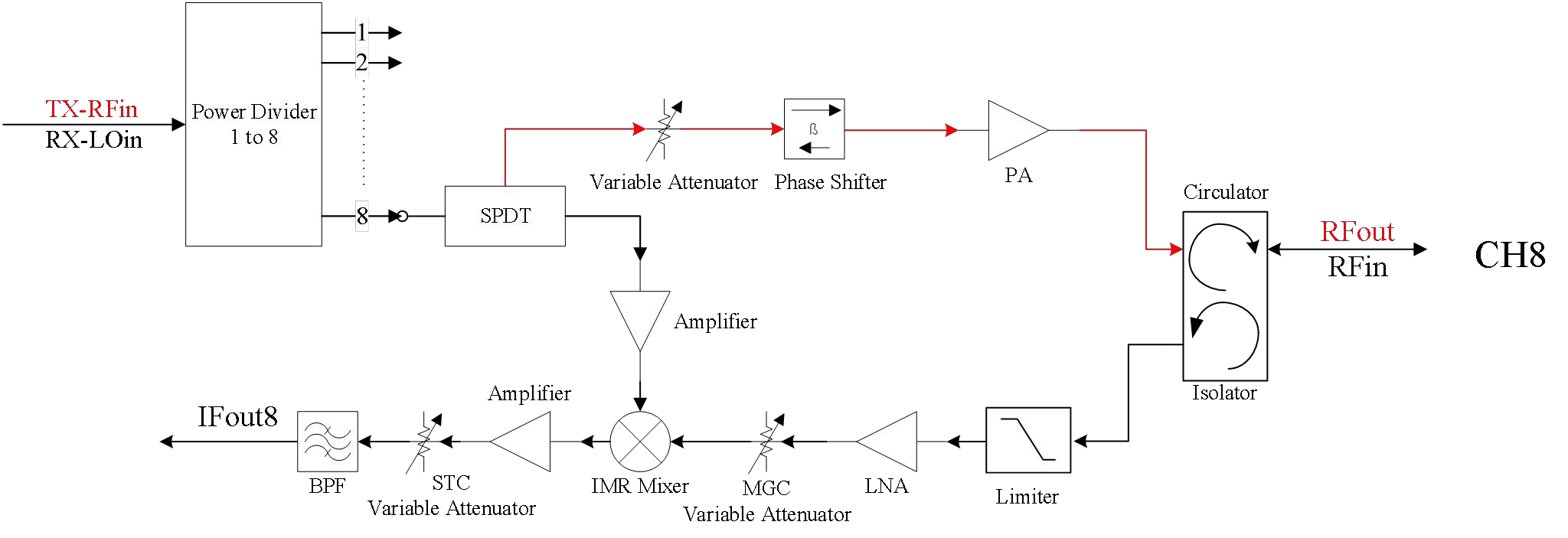

- 8-channels TR integrated for single module
- Includes down-conversion and IF=175MHz
- TX output power:≥43dBm
- TX input power:2±1.5dBm
- RX gain:50±2dB
- RX NF:≤3.7dB
- 6 BIT phase and attenuation control
- ANT Port spacing:15mm
- Size:120 * 100 * 11mm
- Weight:≤300g
