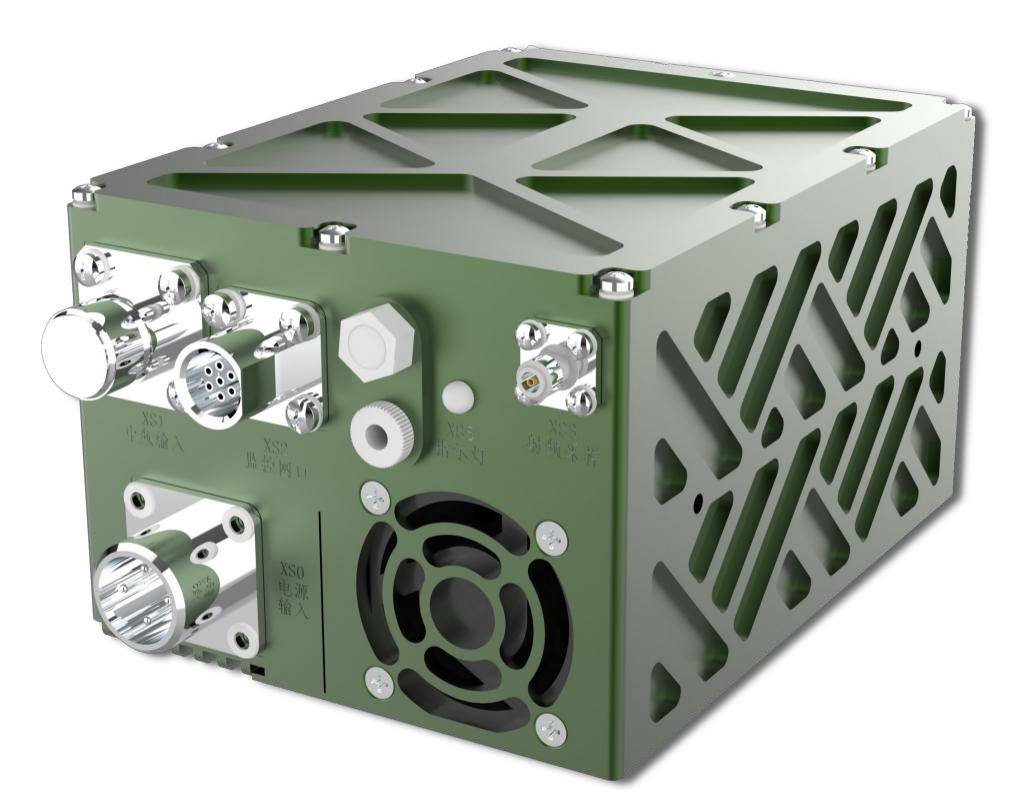

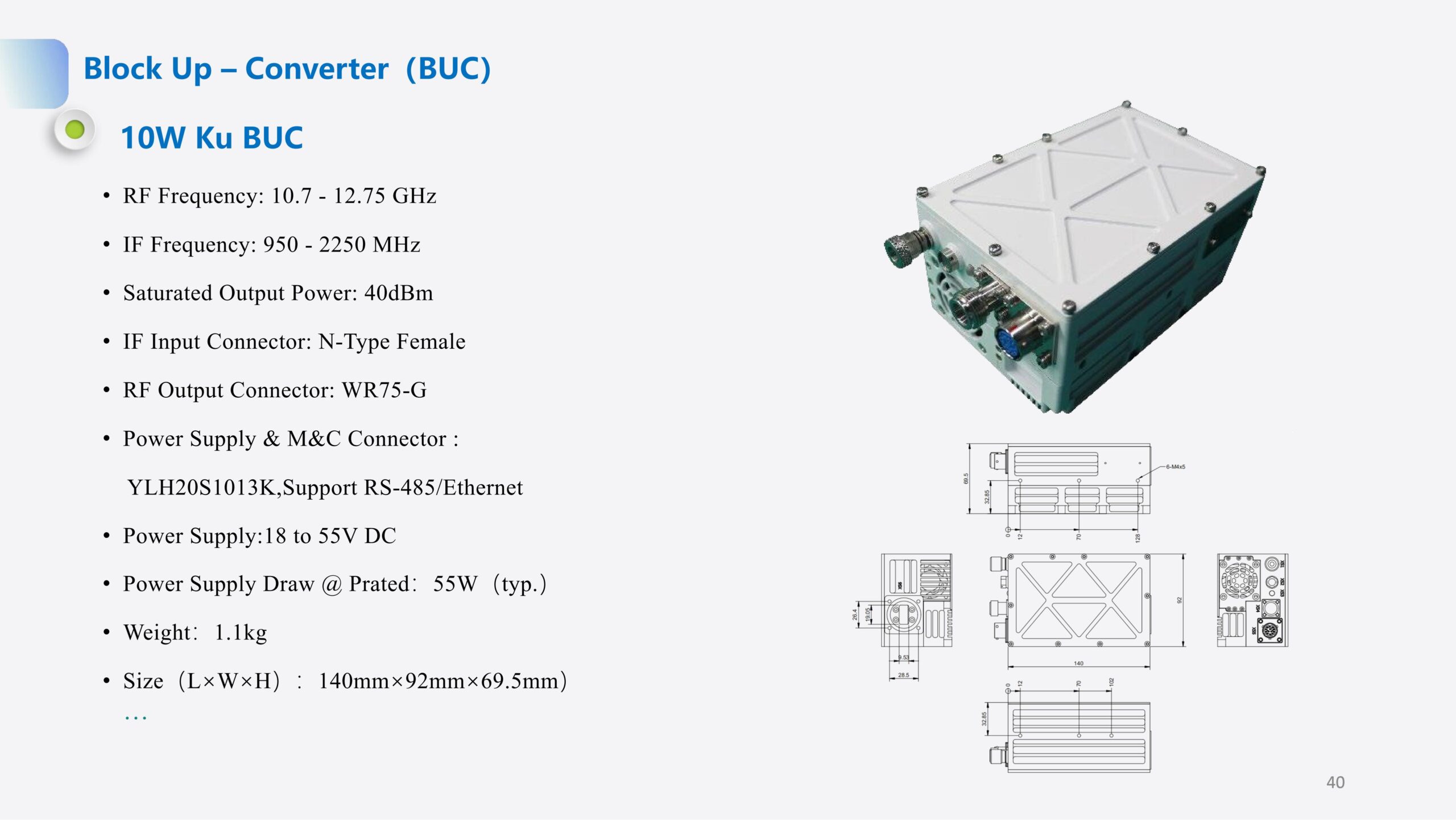

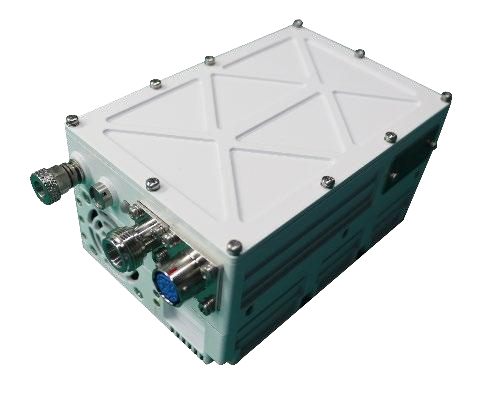

Block Up – Converter（BUC）10W Ku BUC
- RF Frequency: 10.7 – 12.75 GHz
- IF Frequency: 950 – 2250 MHz
- Saturated Output Power: 40dBm
- IF Input Connector: N-Type Female
- RF Output Connector: WR75-G
- Power Supply & M&C Connector :YLH20S1013K,Support RS-485/Ethernet
- Power Supply:18 to 55V DC
- Power Supply Draw @ Prated：55W（typ.）
- Weight：1.1kg

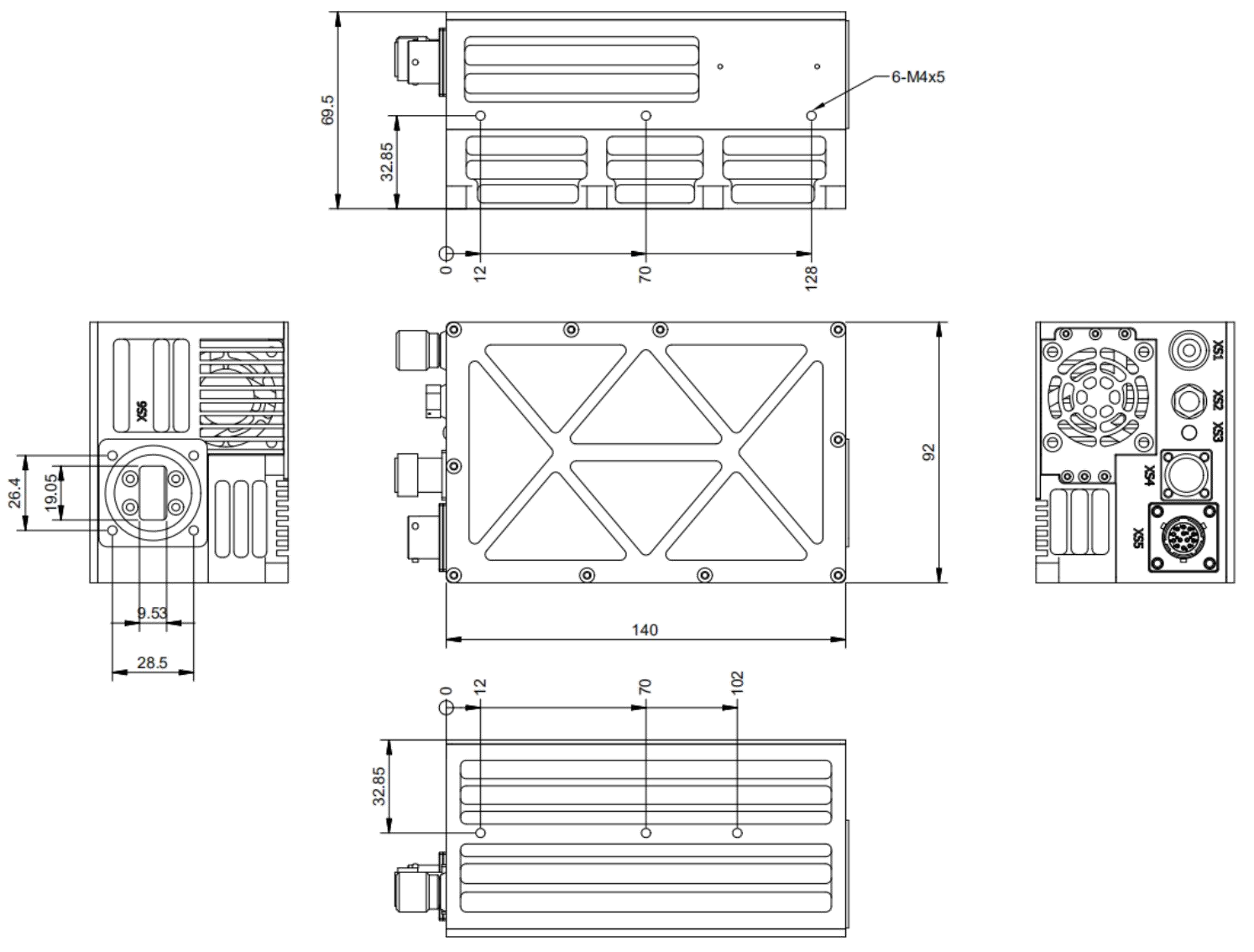

- Size（L×W×H）：140mm×92mm×69.5mm）
