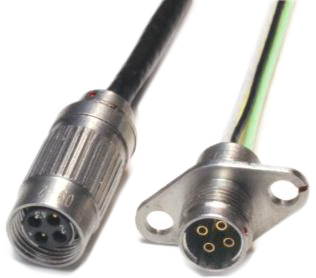

This series of connectors uses threaded locking. The contact points are wire pins with high contact density, available in core counts of 2, 4, 19, and 30. The terminal ends can be either soldered or crimped wires.
Key product parameters include:
- environmental temperature range of 65°C to +125°C
- rated values of 60V DC voltage and 2A current
- vibration range of 10 to 2000Hz at 147m/s²
- insulation resistance of ≥1000MΩ under normal conditions
