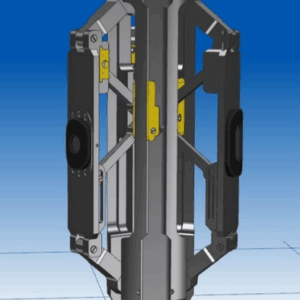

HTHP Litho-Density Logging Tool Mechanical Centralizer

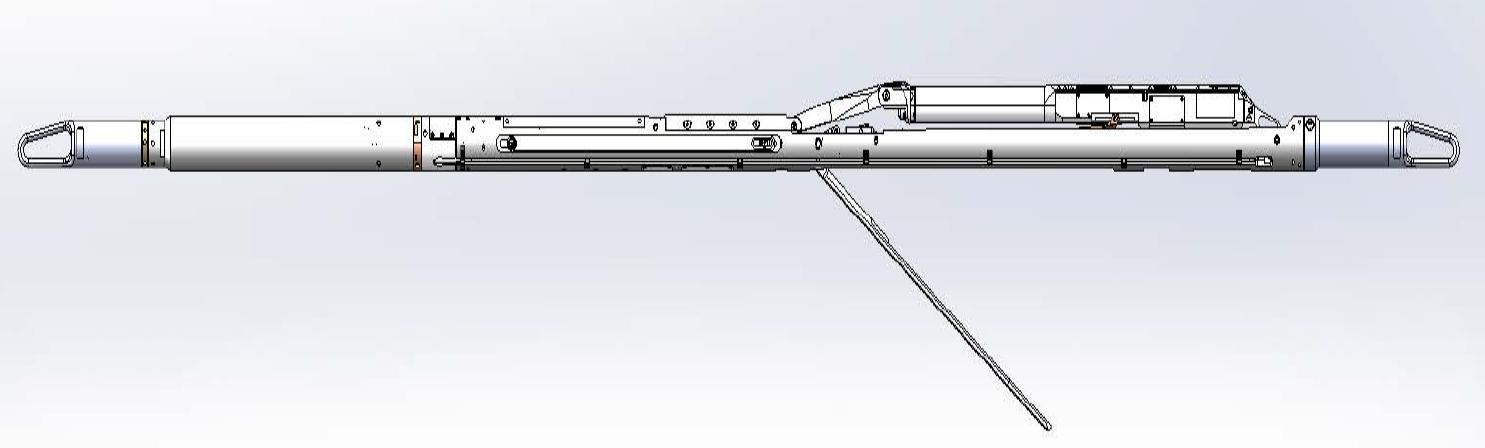

UHTP Litho-Density Logging Tool Caliper Arm
- Customizable upper/lower electro-mechanical interfaces
- Mechanical caliper arm
- Ambient temperature: 230 degree C
- Ambient pressure: 170MPa
- Logging tool OD: 76mm (CPL OD 76 series standard interface)
- Max. diameter: OD 92mm
- Applicable borehole diameter range: 104-332mm (with probe extension rod)
- Total arm length: 3188m
2024 Application: Tarim’s 10km well (Xinjiang) logging
