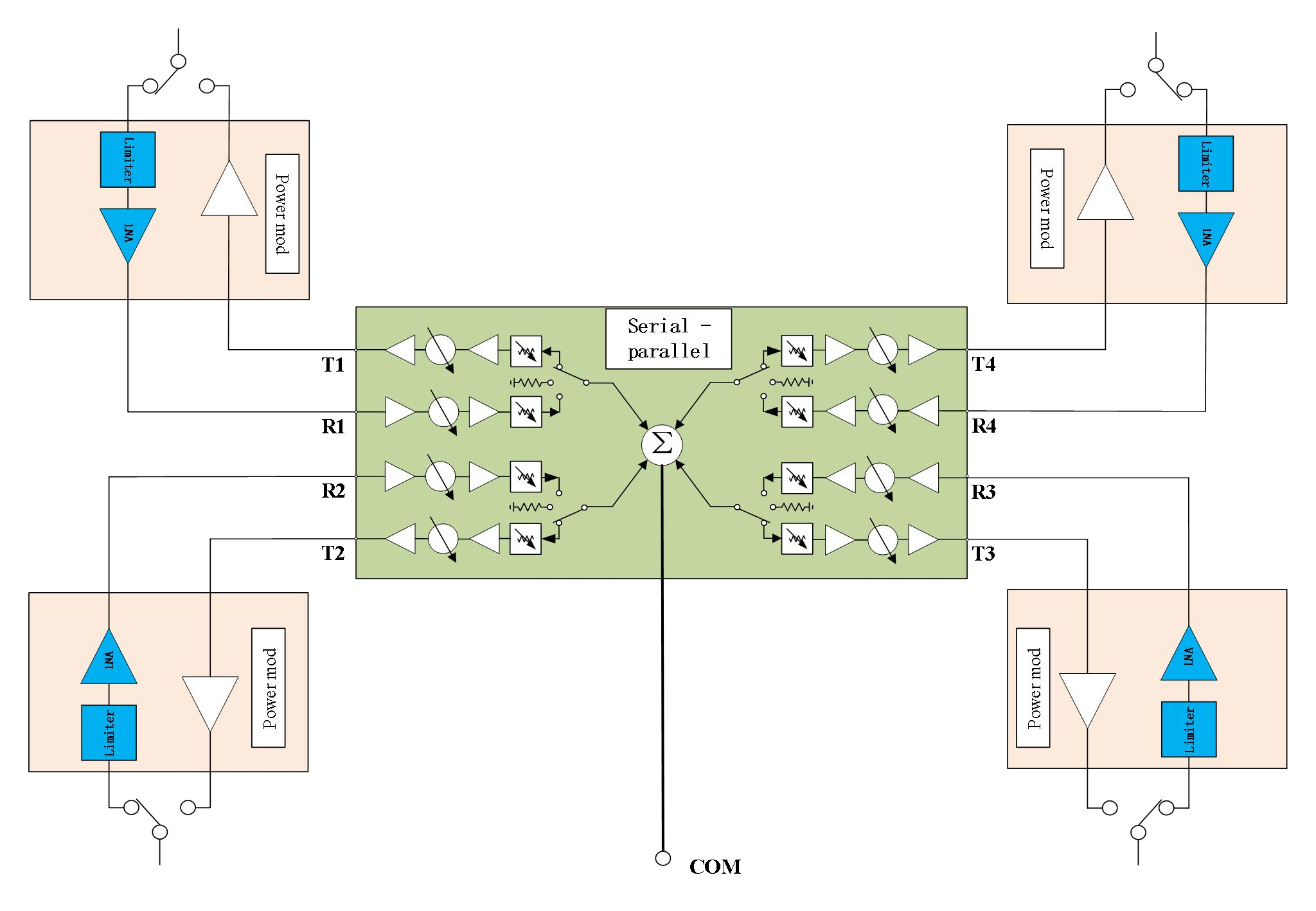

TR Chip X-Band TR Chip – 4CH 2W
- Frequency :8~12GHz
RX
- RX Linear Gain: 20dB
- RX NF: 2.5dB
- RX input P-1:-26dBm
- RX handling power: 33dBm
- 6-bit phase shift, step 5.625 °,RMS:4 °
- 6-bit ATT, step 0.5dB,RMS:0.6dB
- RX Power Consumption: 2.5V:180mA
TX
- TX saturation output power: 33dBm @ Pin = 8dBm
- TX PAE: 28%(100us,DC:30%)
- 6-bit phase shift, step 5.625 °,RMS:4 °
- TX Power Consumption: 28V: 400m A; 2.5V: 210 mA

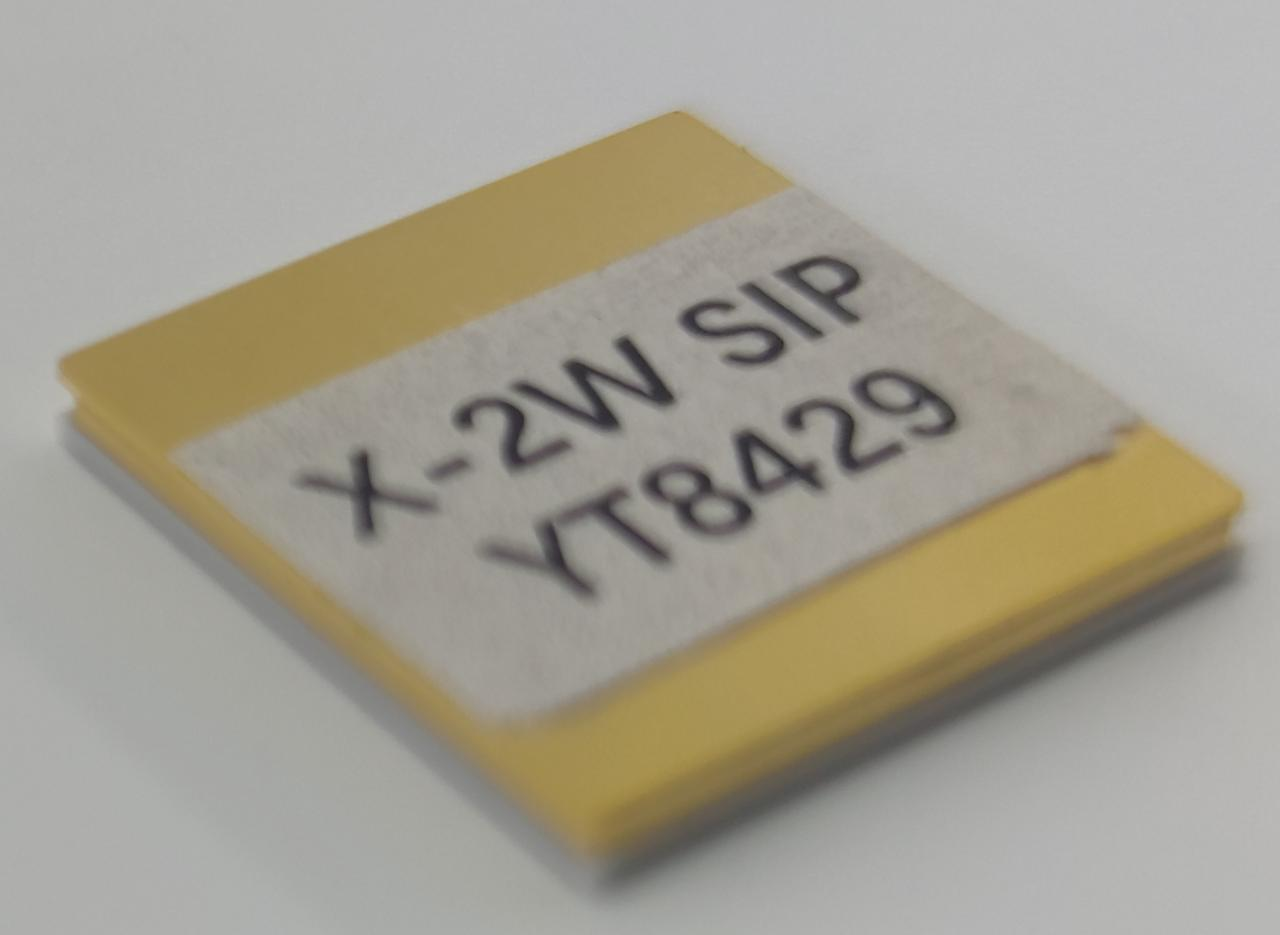

- Size:16mm × 16mm × 2mm
