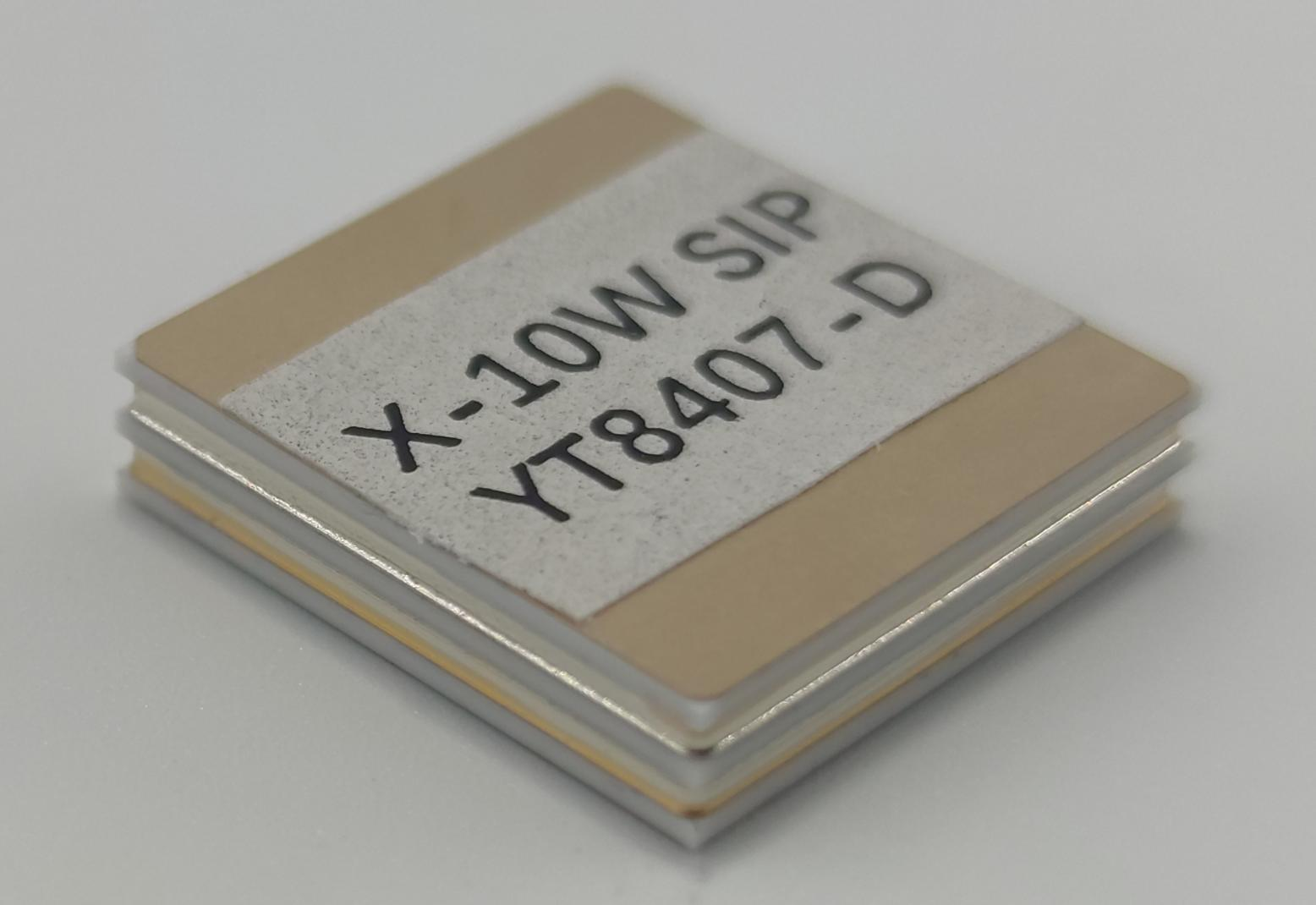

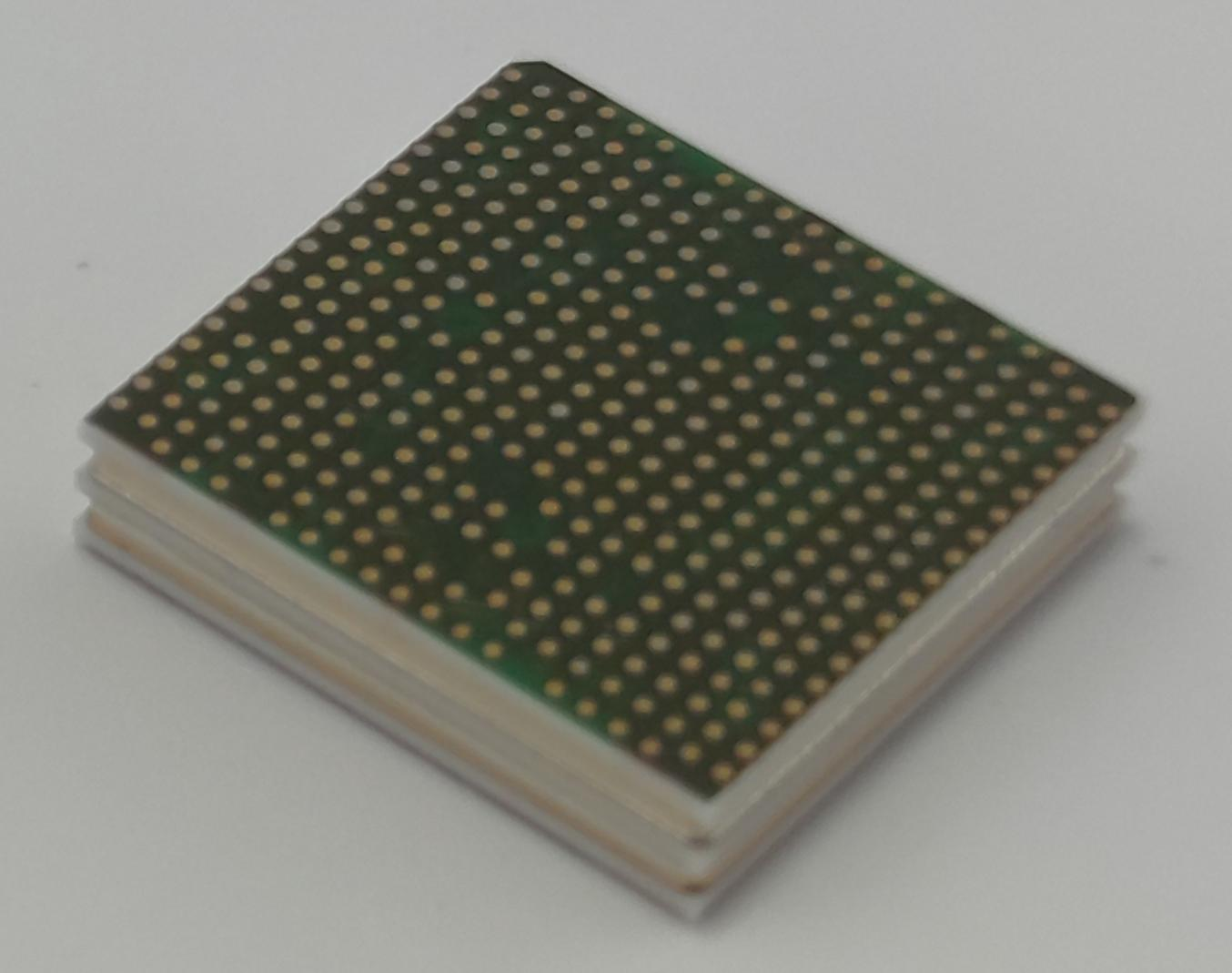

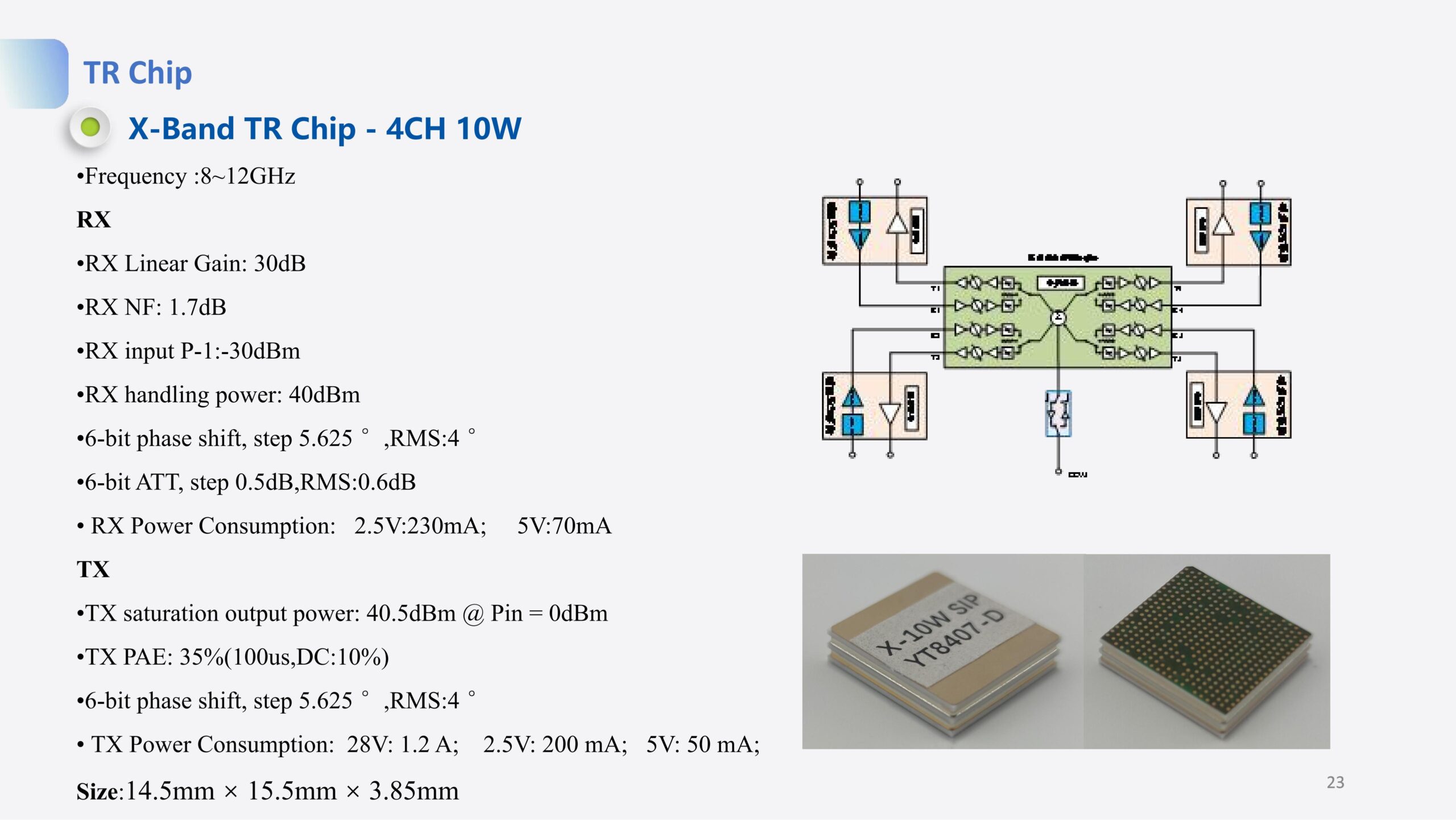

TR Chip X-Band TR Chip – 4CH 10W
- Frequency :8~12GHz
RX
- RX Linear Gain: 30dB
- RX NF: 1.7dB
- RX input P-1:-30dBm
- RX handling power: 40dBm
- 6-bit phase shift, step 5.625 °,RMS:4 °
- 6-bit ATT, step 0.5dB,RMS:0.6dB
- RX Power Consumption: 2.5V:230mA; 5V:70mA
TX
- TX saturation output power: 40.5dBm @ Pin = 0dBm
- TX PAE: 35%(100us,DC:10%)
- 6-bit phase shift, step 5.625 °,RMS:4 °
- TX Power Consumption: 28V: 1.2 A; 2.5V: 200 mA; 5V: 50 mA;
- Size:14.5mm × 15.5mm × 3.85mm
