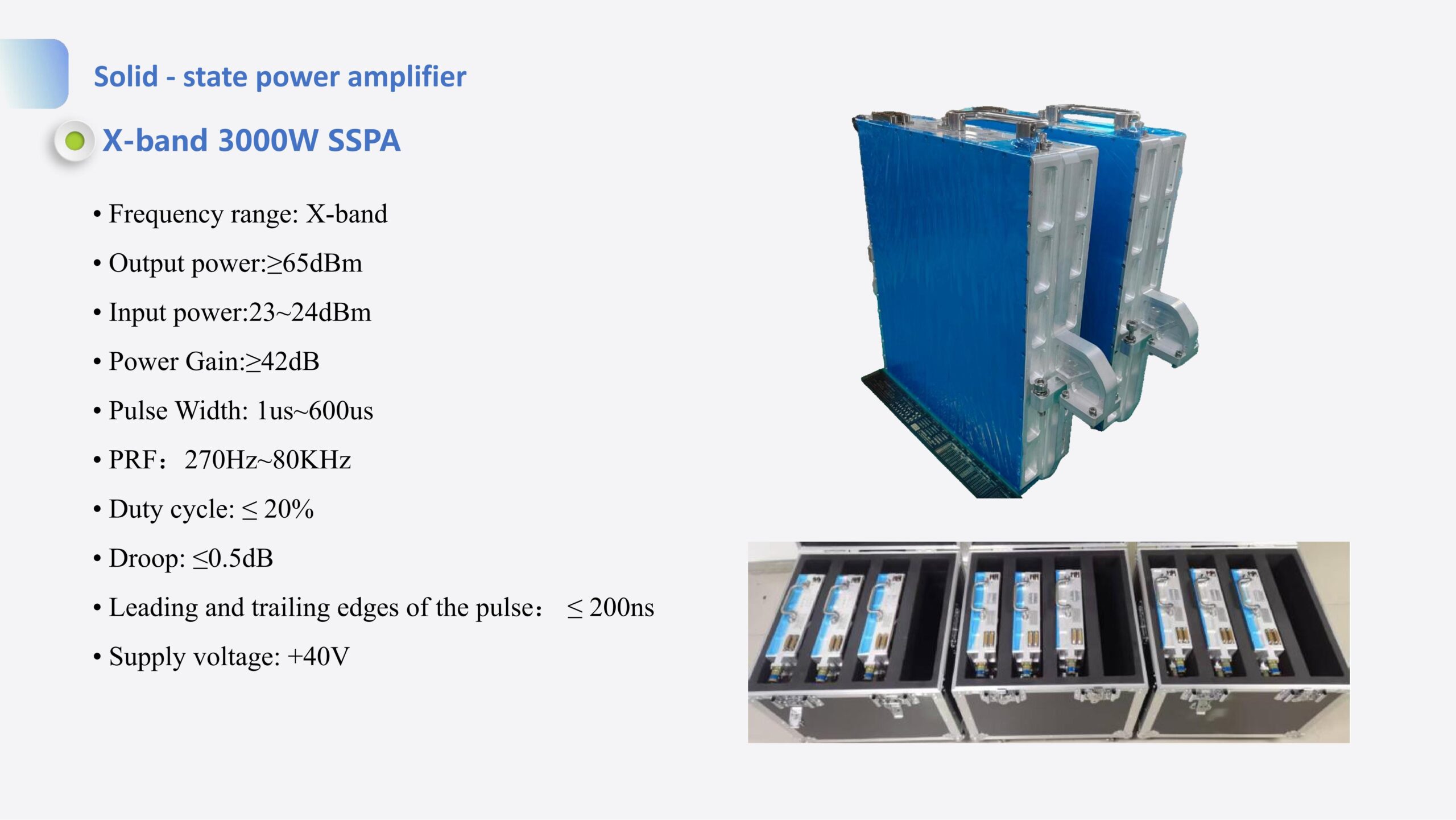

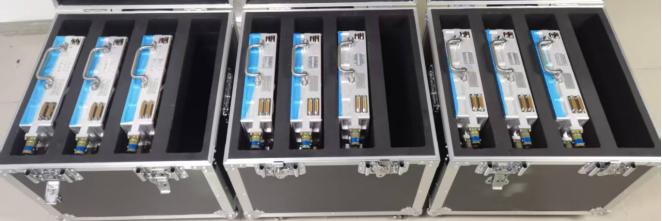

Solid – state power amplifier X-band 3000W SSPA
- Frequency range: X-band
- Output power:≥65dBm
- Input power:23~24dBm
- Power Gain:≥42dB
- Pulse Width: 1us~600us
- PRF：270Hz~80KHz
- Duty cycle: ≤ 20%
- Droop: ≤0.5dB
- Leading and trailing edges of the pulse： ≤ 200ns
- Supply voltage: +40V
