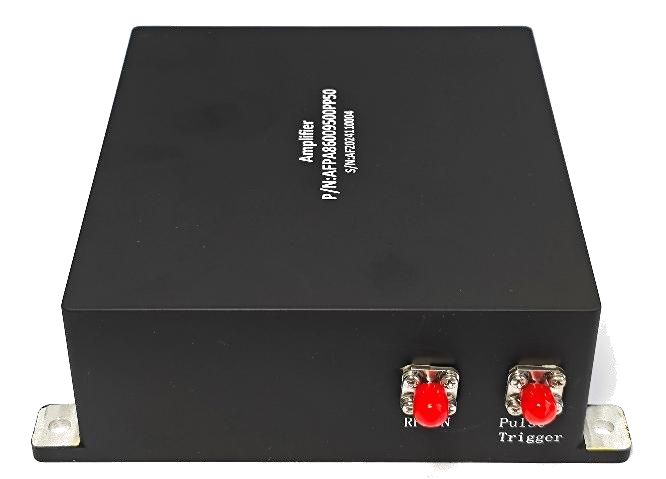

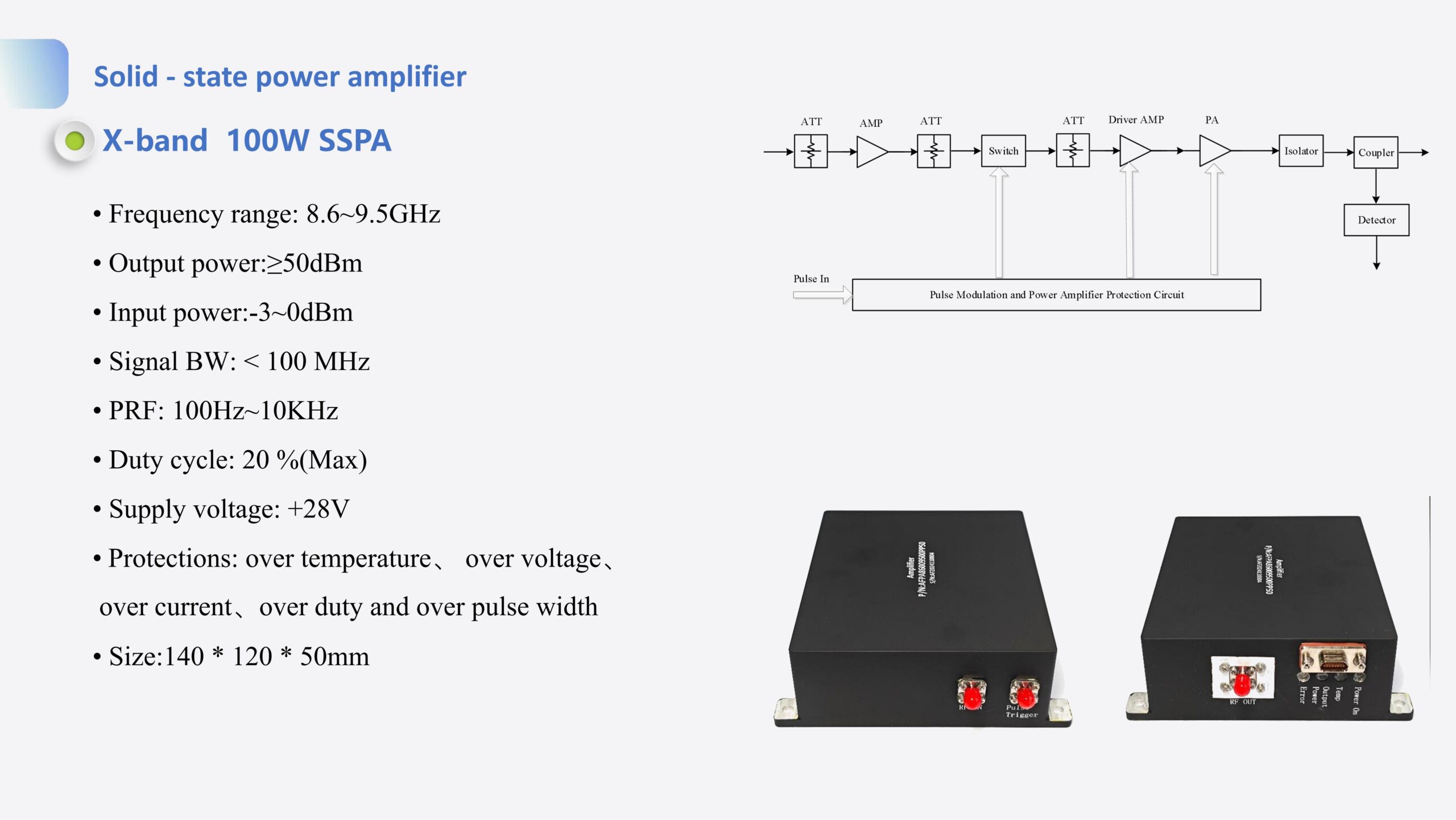

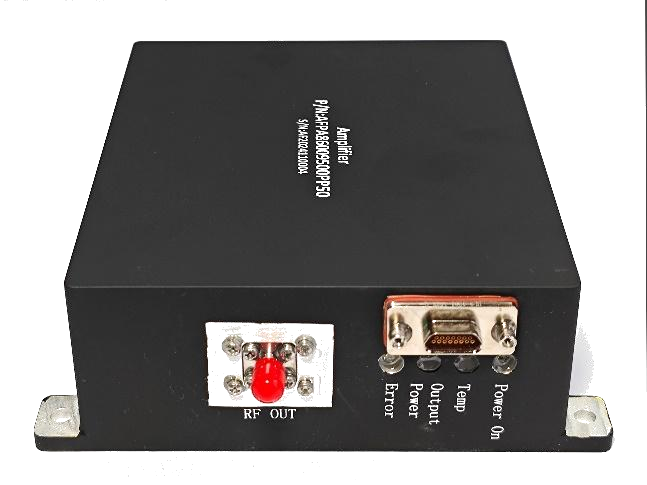

Solid – state power amplifier X-band 100W SSPA
- Frequency range: 8.6~9.5GHz
- Output power:≥50dBm
- Input power:-3~0dBm
- Signal BW: < 100 MHz
- PRF: 100Hz~10KHz
- Duty cycle: 20 %(Max)
- Supply voltage: +28V
- Protections: over temperature、 over voltage、
- over current、over duty and over pulse width
- Size:140 * 120 * 50mm
