Downhole Caliper Logging Tools

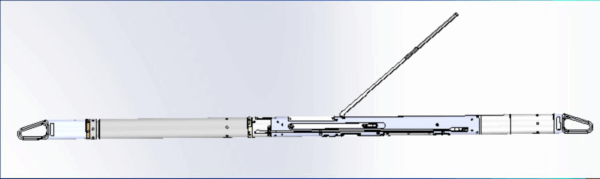

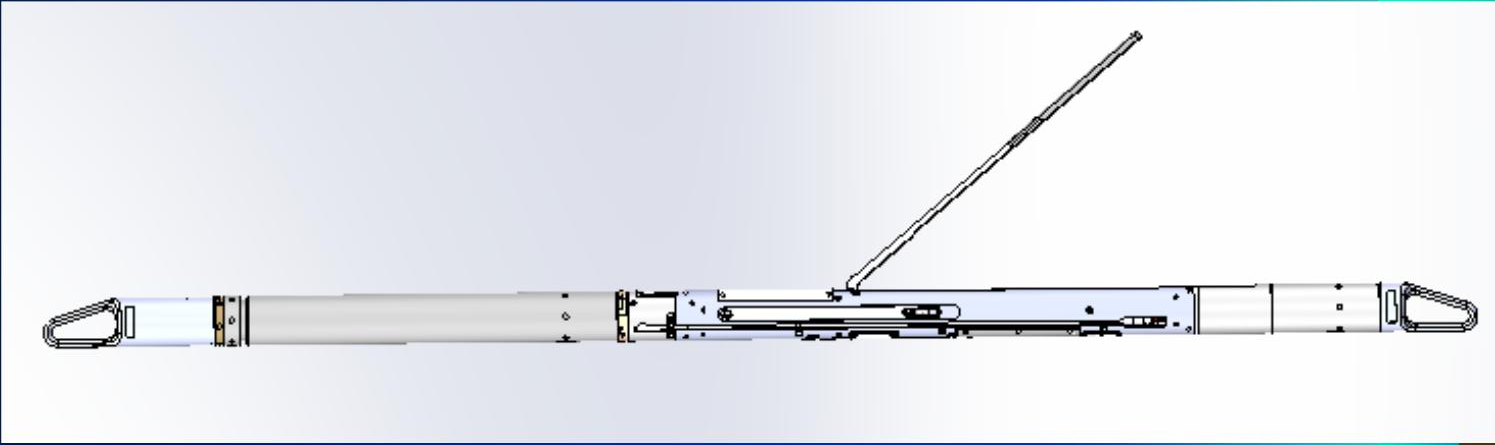

Single-Arm Caliper
- Customizable upper/lower electromechanical interfaces
- Mechanically caliper
- Ambient temperature: 175 degree C
- AmbientPressure: 140MPa
- Tool diameter: OD 90mm
- Max diameter: OD 90 mm
- borehole range: 102mm–457 mm
- Length: 2000mm
- Function: replaces the spring-loaded eccentric tool for compensated neutron logging
Sold more than 16 pcs.
