Matched Power Amplifier YTNCM-085096-P50

Categories: Microwave Components, Power Amplifier Tags: Matched Power Amplifier YTNCM-085096-P50

Download Download

Features

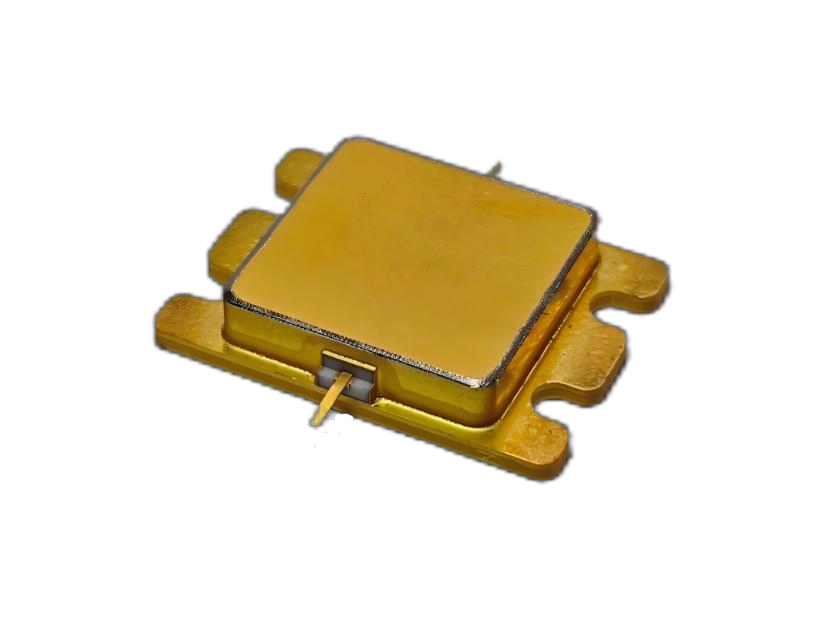

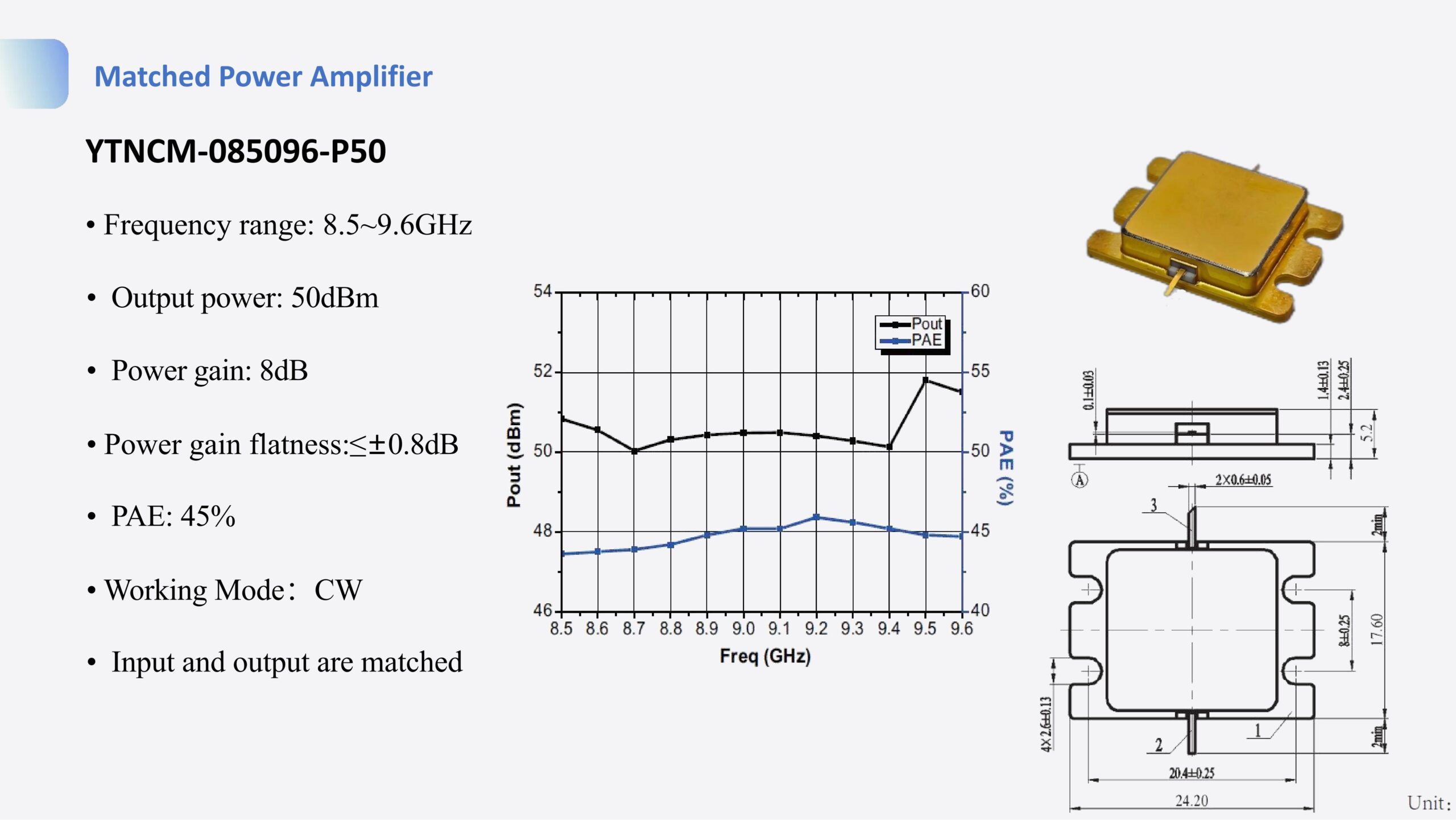

Matched Power Amplifier YTNCM-085096-P50

Frequency range: 8.5~9.6GHz

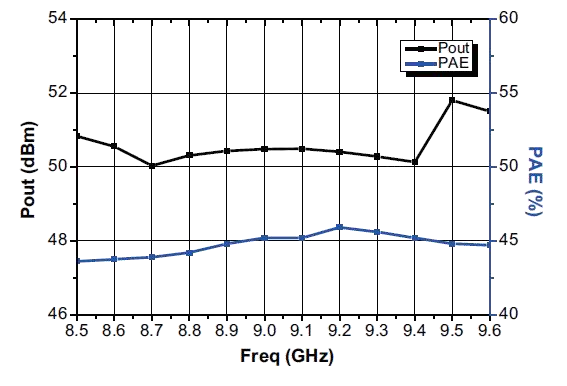

Output power: 50dBm
Power gain: 8dB
Power gain flatness:≤±0.8dB
PAE: 45%
Working Mode：CW
Input and output are matched
