Formation Tester Series

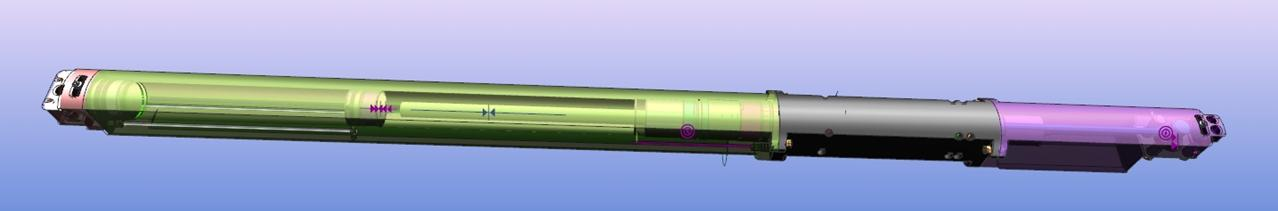

Formation Testing Dedicated Pumping Module
- Patented technology integrating hydraulic power and hybrid fluid extraction pump;
- High-pressure hydraulic oil output: maximum pressure: 3,500 psi， Flow rate: 150-1,500 cc/min
- Hybrid fluid pump sample input/output ports with 6,000 psi pressure differential displacementaccuracy: ±0.05%, precision electric pumping, combines pressure measurement and fluid sampling into one
- Ambient temperature: 204 degree C, Maximum pressure: 20,000 psi;
- Anti-vibration: 20G RMS(5-1KHz) Anti-shock: 500G@1ms;
- Application compatibility：wireline formation testing, formation testing while drilling,
This module has been ordered by a major state-owned oilfield services company in China.
