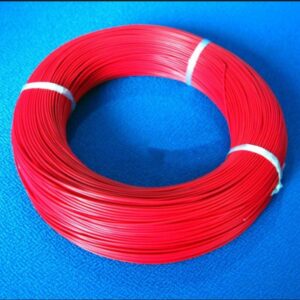

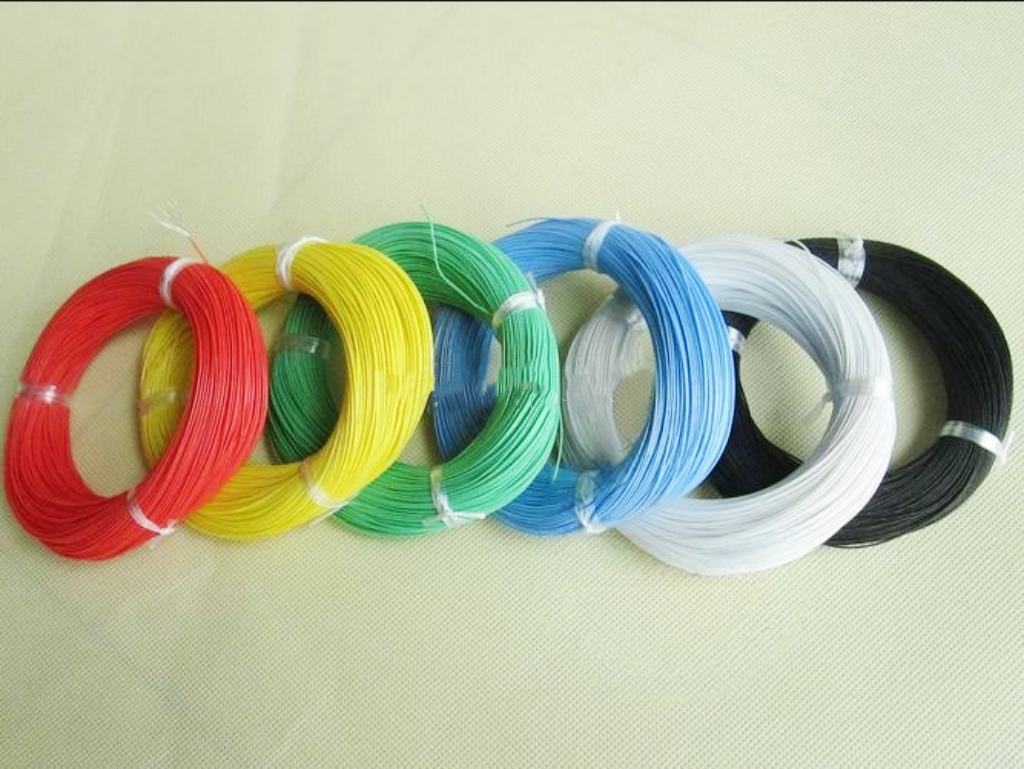

FF4-2Q 24AWG(19/0.12mm)PTFE insulated wire

Structural Dimensions:

1.Conductor: 19/0.12mm silver-plated copper wire stranded conductor. Conductor cross-sectional area: 0.2mm2;

2.Insulation: PTFE insulation, the thickness of the thinnest point of insulation should be not less than 0.22mm, and the OD insulation is not more than 1.14±0.05mm;

Performance Parameters:

1.Rated voltage: 600V;

2.Operating temperature: -65 degree C to +250 degree C;

3.DCconductor resistance:No more than 83.5Ω / km at 20 degree C;

4.Withstand voltage: immersion withstand voltage 2.20kV, 50Hz, 1min without breakdown;

5.Insulation resistance: noless than 1.5×103MΩkm at 20 degree C;
