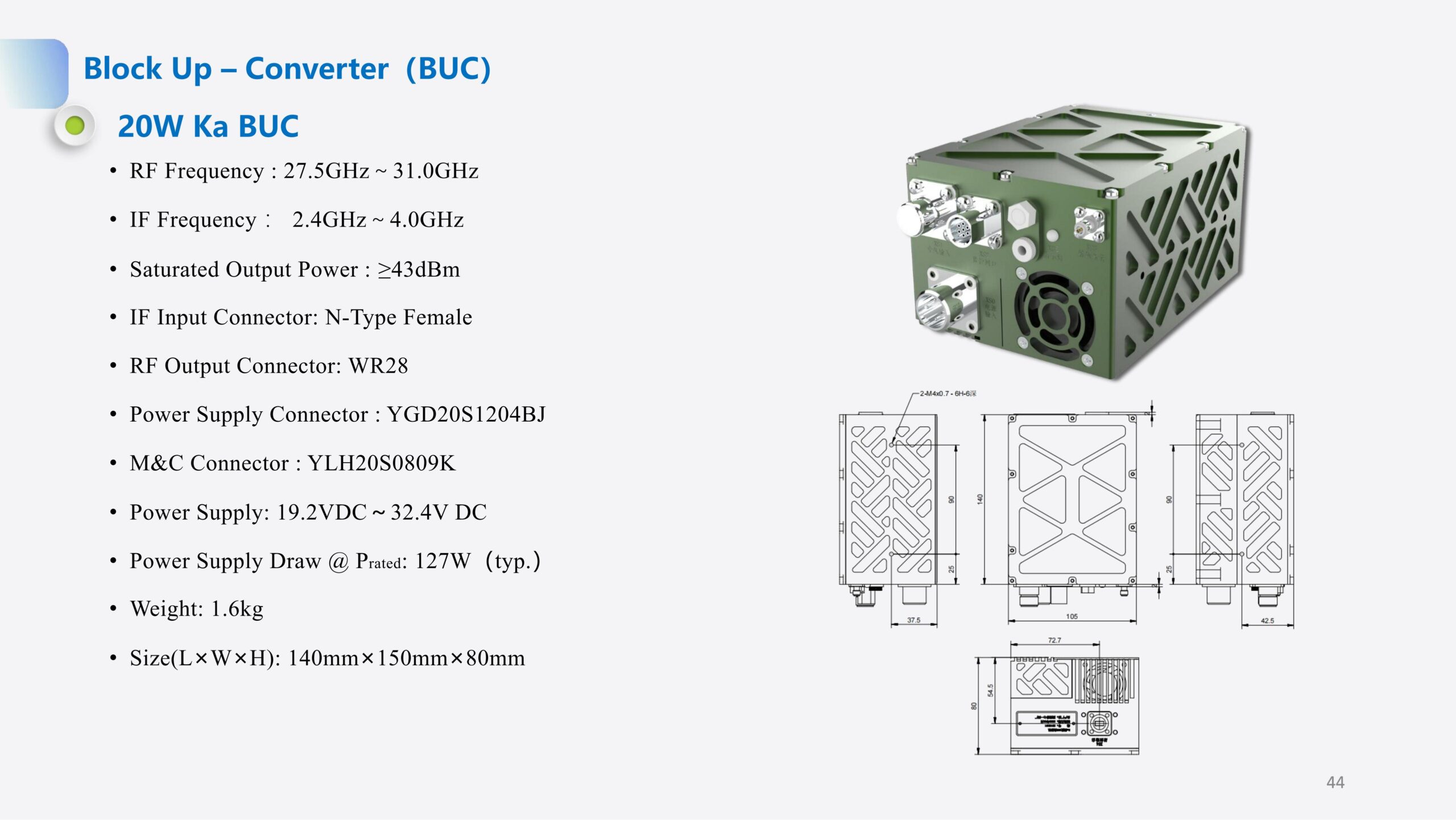

Block Up – Converter（BUC）20W Ka BUC
- RF Frequency : 27.5GHz～31.0GHz
- IF Frequency ： 2.4GHz～4.0GHz
- Saturated Output Power : ≥43dBm
- IF Input Connector: N-Type Female
- RF Output Connector: WR28
- Power Supply Connector : YGD20S1204BJ
- M&C Connector : YLH20S0809K
- Power Supply: 19.2VDC～32.4V DC
- Power Supply Draw @ Prated: 127W（typ.）
- Weight: 1.6kg

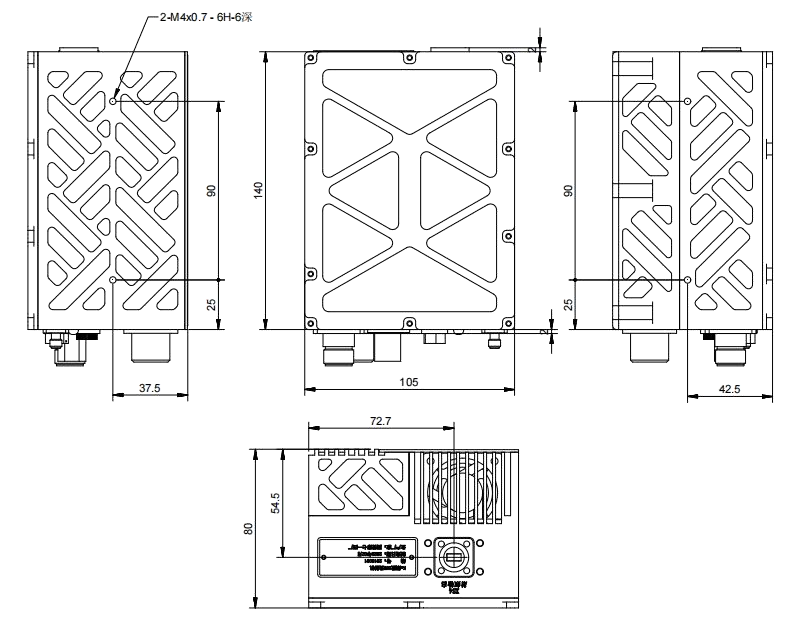

- Size(L×W×H): 140mm×150mm×80mm
