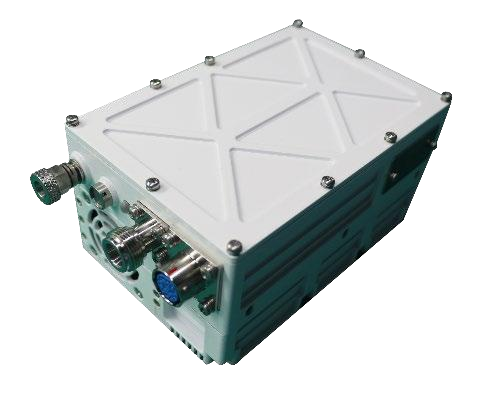

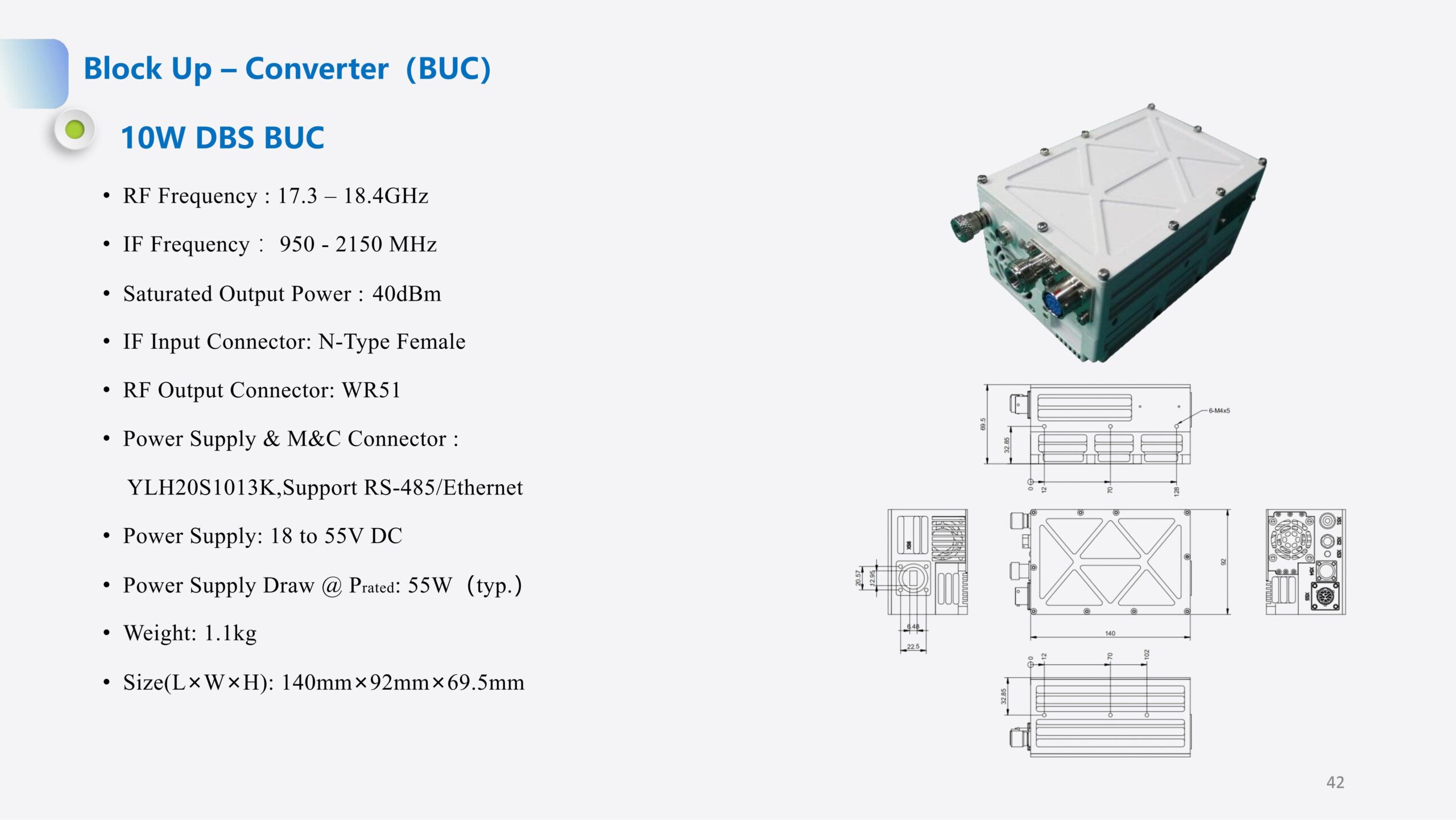

Block Up – Converter（BUC）10W DBS BUC
- RF Frequency : 17.3 – 18.4GHz
- IF Frequency ：950 – 2150 MHz
- Saturated Output Power : 40dBm
- IF Input Connector: N-Type Female
- RF Output Connector: WR51
- Power Supply & M&C Connector :
- YLH20S1013K,Support RS-485/Ethernet
- Power Supply: 18 to 55V DC
- Power Supply Draw @ Prated: 55W（typ.）
- Weight: 1.1kg

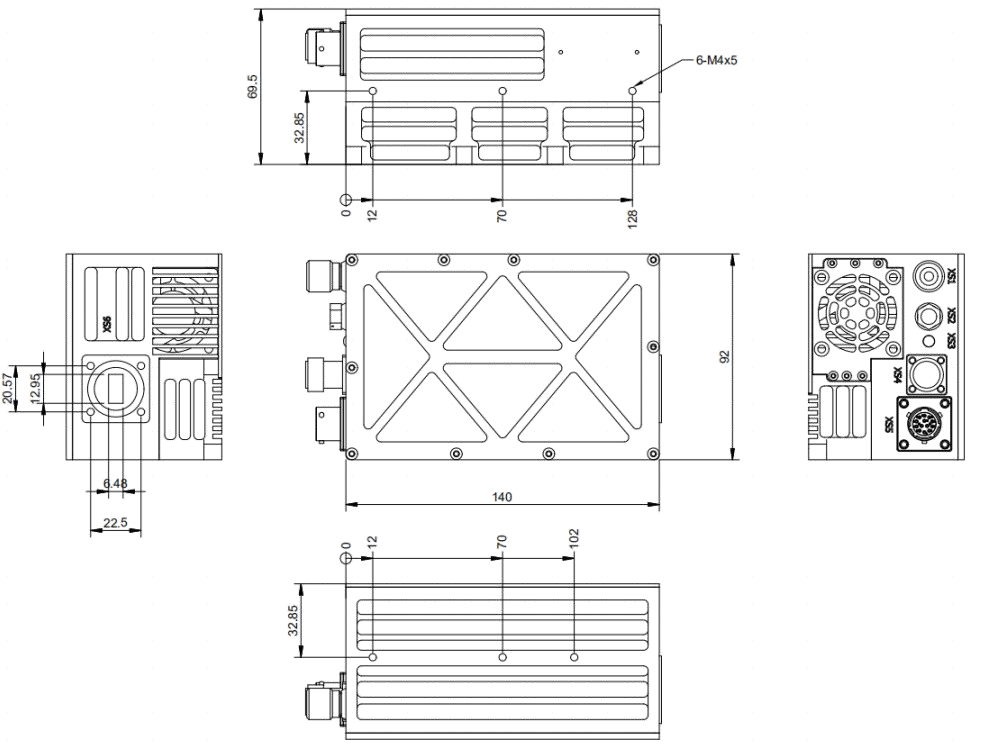

- Size(L×W×H): 140mm×92mm×69.5mm
