Block Up – Converter（BUC）100W DBS BUC
- RF Frequency : 17.3 – 18.4 GHz
- IF Frequency ：950 – 2050 MHz
- Saturated Output Power : 50dBm
- IF Input Connector: N-Type Female
- RF Output Connector: WR51
- Power Supply Connector: YGD20S1203J
- M&C Connector: YLH24S0809K,Support
- RS-232/RS-485/Ethernet
- Power Supply: 85 to 265V AC，47 to 63Hz
- Power Supply Draw @ Prated: 550W（typ.）
- Weight: 4.5kg

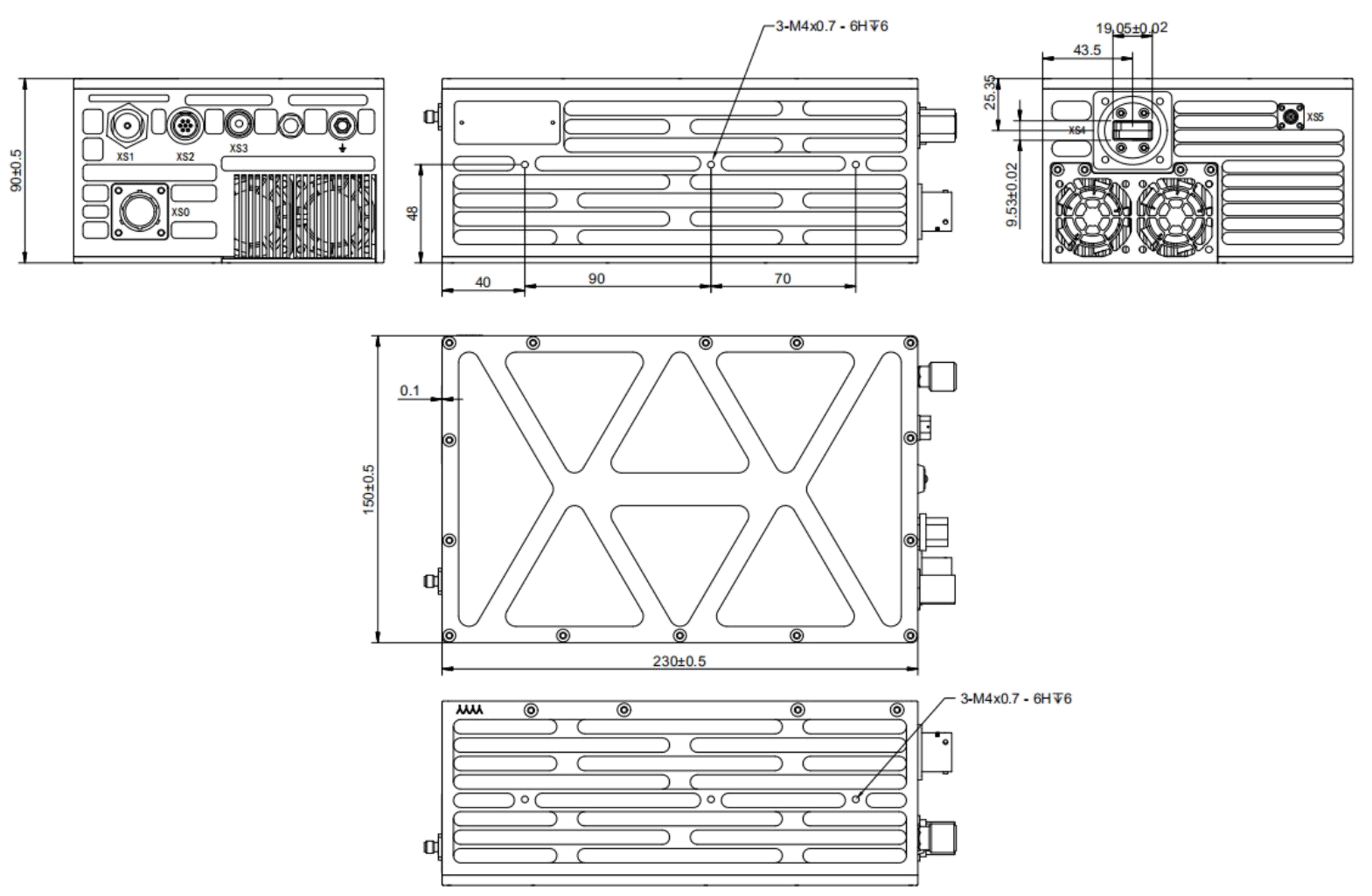

- Size(L×W×H): 230mm×150mm×90mm
