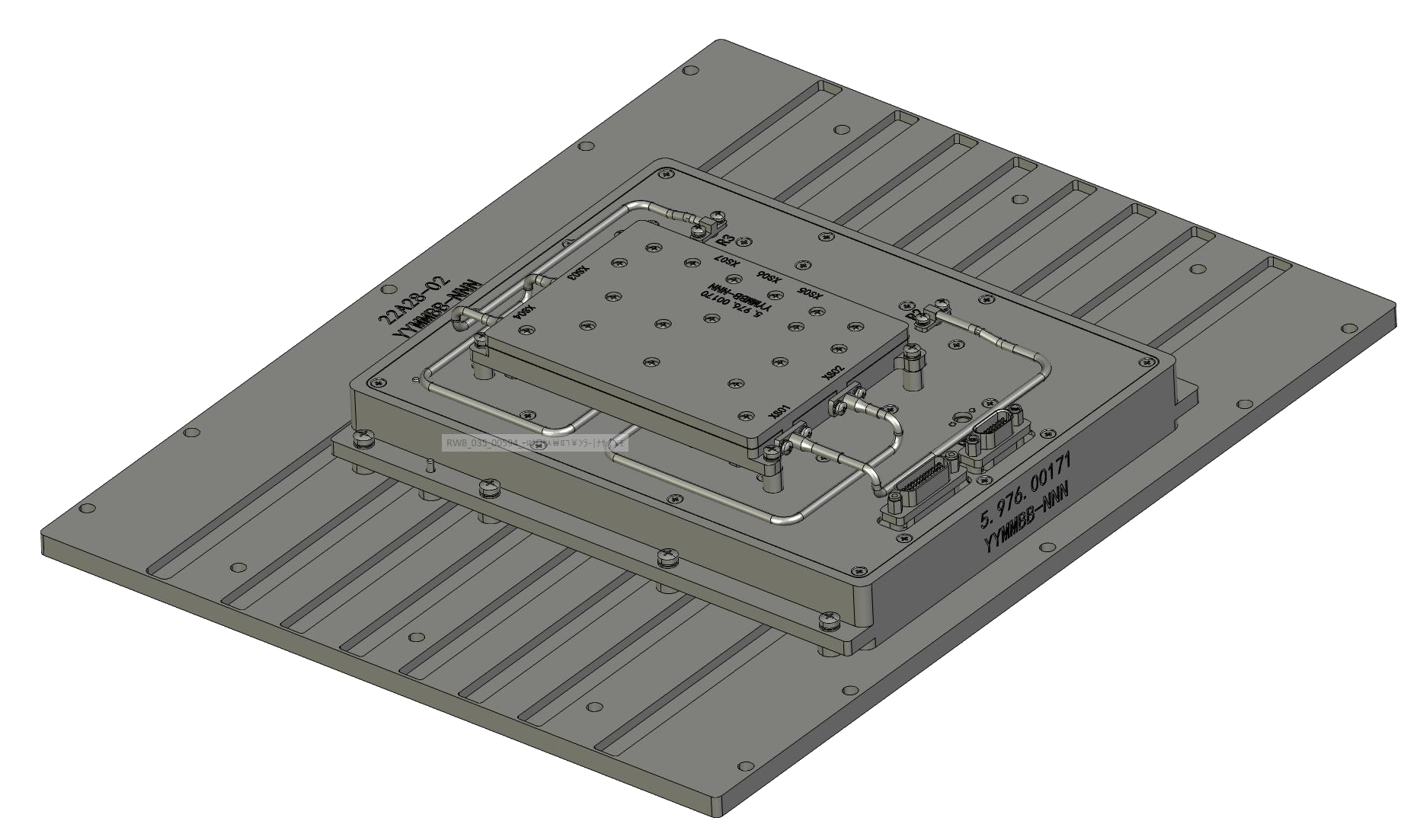

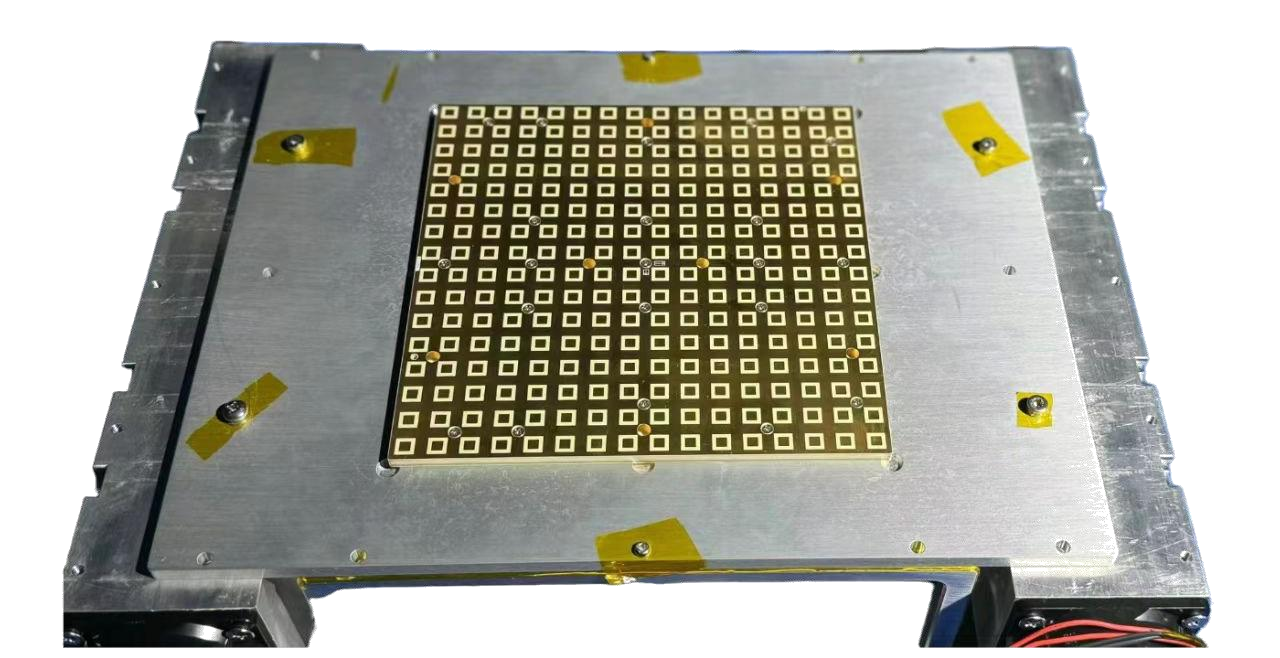

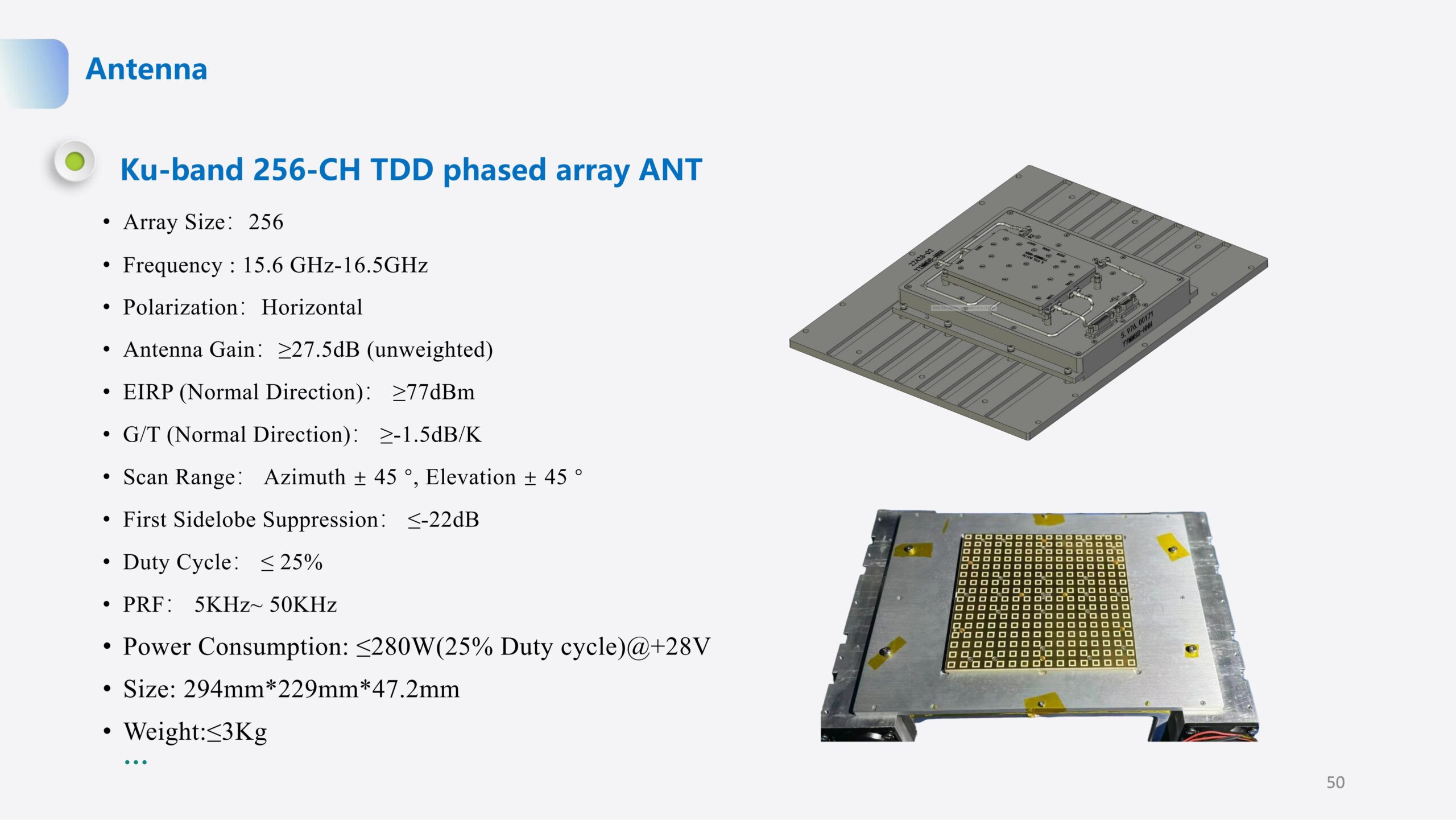

Antenna Ku-band 256-CH TDD phased array ANT
- Array Size：256
- Frequency : 15.6 GHz-16.5GHz
- Polarization：Horizontal
- Antenna Gain：≥27.5dB (unweighted)
- EIRP (Normal Direction)： ≥77dBm
- G/T (Normal Direction)： ≥-1.5dB/K
- Scan Range： Azimuth ± 45 °, Elevation ± 45 °
- First Sidelobe Suppression： ≤-22dB
- Duty Cycle： ≤ 25%
- PRF： 5KHz~ 50KHz
- Power Consumption: ≤280W(25% Duty cycle)@+28V
- Size: 294mm*229mm*47.2mm
- Weight:≤3Kg
