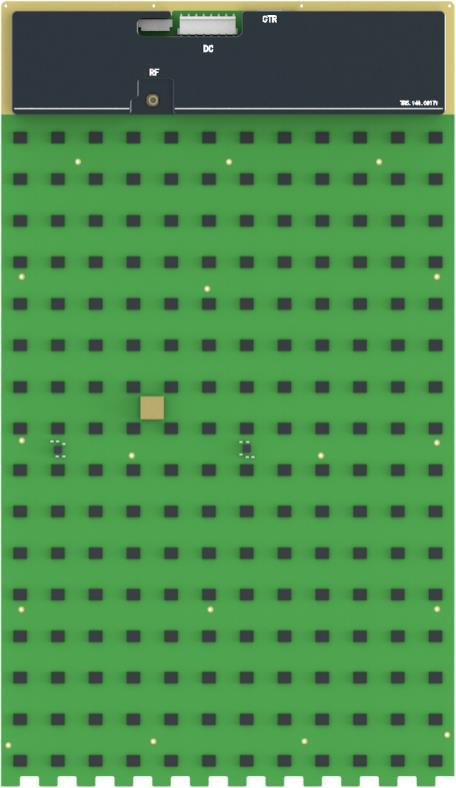

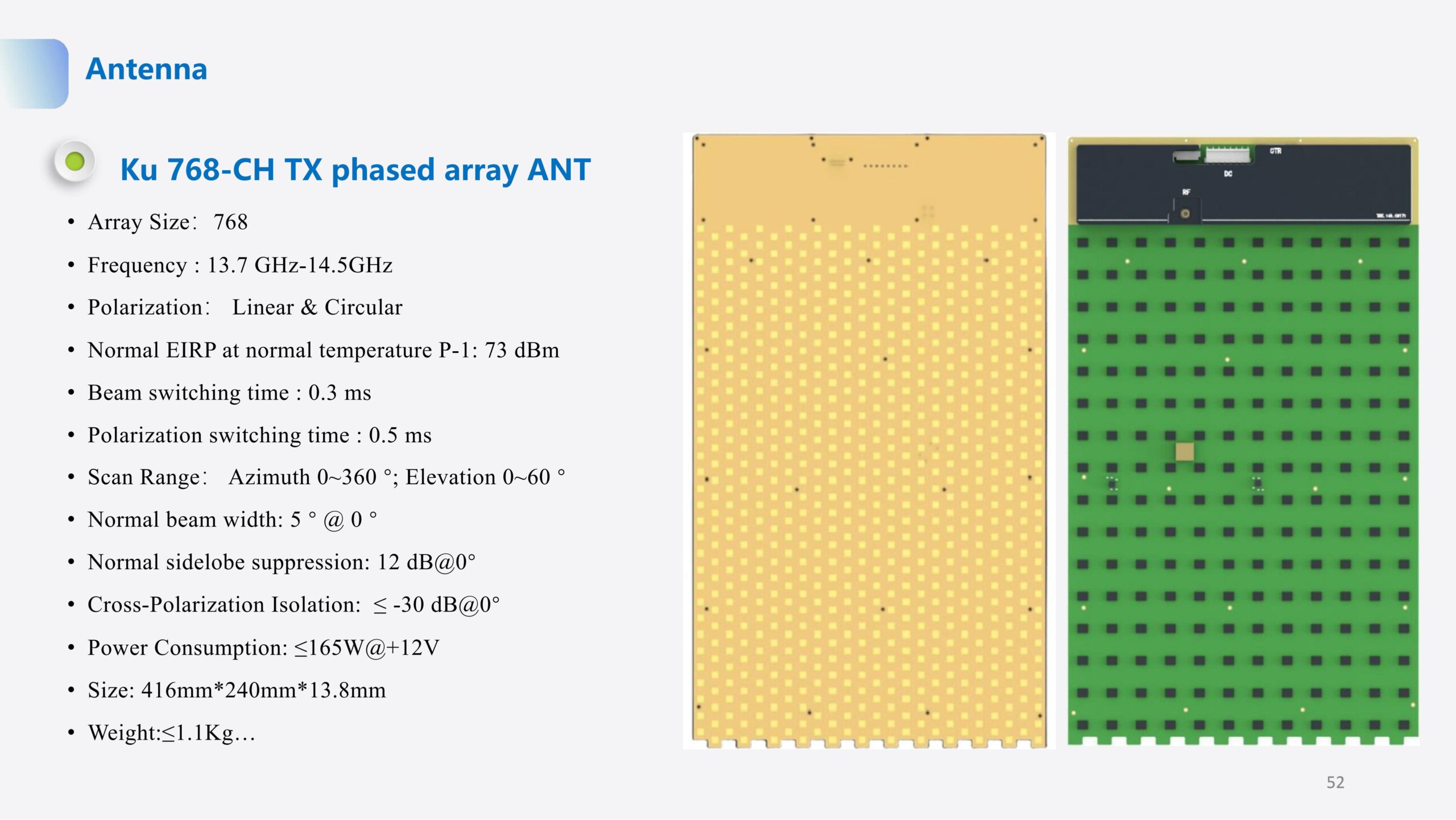

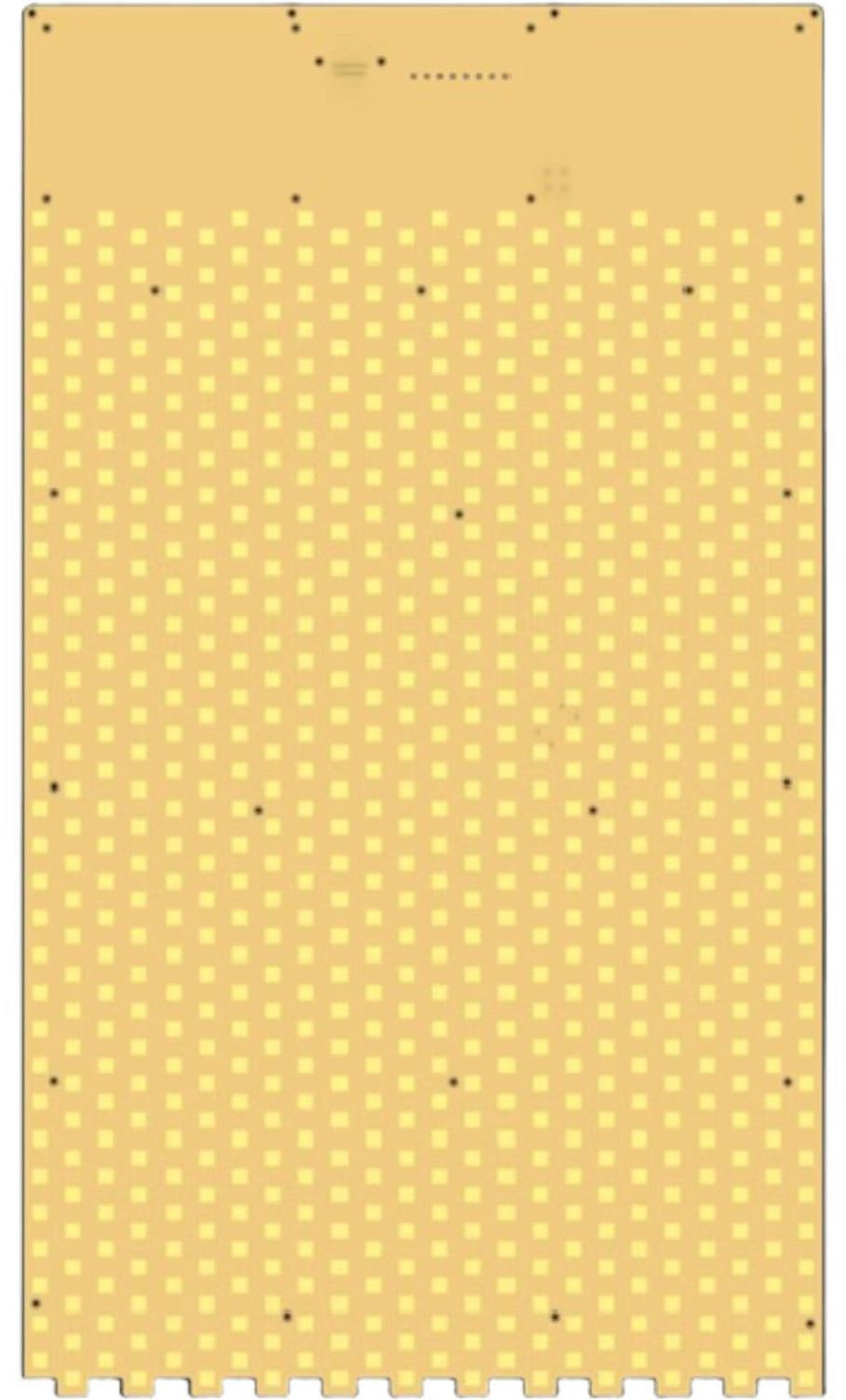

Antenna Ku 768-CH TX phased array ANT
- Array Size：768
- Frequency : 13.7 GHz-14.5GHz
- Polarization： Linear & Circular
- Normal EIRP at normal temperature P-1: 73 dBm
- Beam switching time : 0.3 ms
- Polarization switching time : 0.5 ms
- Scan Range： Azimuth 0~360 °; Elevation 0~60 °
- Normal beam width: 5 ° @ 0 °
- Normal sidelobe suppression: 12 dB@0°
- Cross-Polarization Isolation: ≤ -30 dB@0°
- Power Consumption: ≤165W@+12V
- Size: 416mm*240mm*13.8mm
- Weight:≤1.1Kg…
